The project is in Torba, near Bodrum, a town that tourism, construction and relentless development pressure have so far only grazed. It consists of two-storey, mostly detached summer houses and a few boutique hotels.

Voyage Torba is the town’s largest hotel. The project site combines two large hotels. The new programme, with a reduced number of rooms, covers a 74,000 m² site with 60,000 m² of built area and 345 rooms. The site consists of 5 zones and 5 building types, each designed for the needs and context of its zone.

Location

Torba, Bodrum

Client

Voyag Otelcilik İnşaat Turizm İşletmeciliği

Year

2020

Status

Built

Program

TOURISM

Site Area

74,000

m²

Project Area

60,000

m²

Design Team

Abdurrahman Çekim, Sevilay Uğur Çekim, Çağla Makara, İrem Cihanoğlu, Kübra Paksoy, Behlül Kıryolcu, Havva Nur Şen, Berkay Öztürk, Birce Tülbez


Orhun Ülgen / Voyage

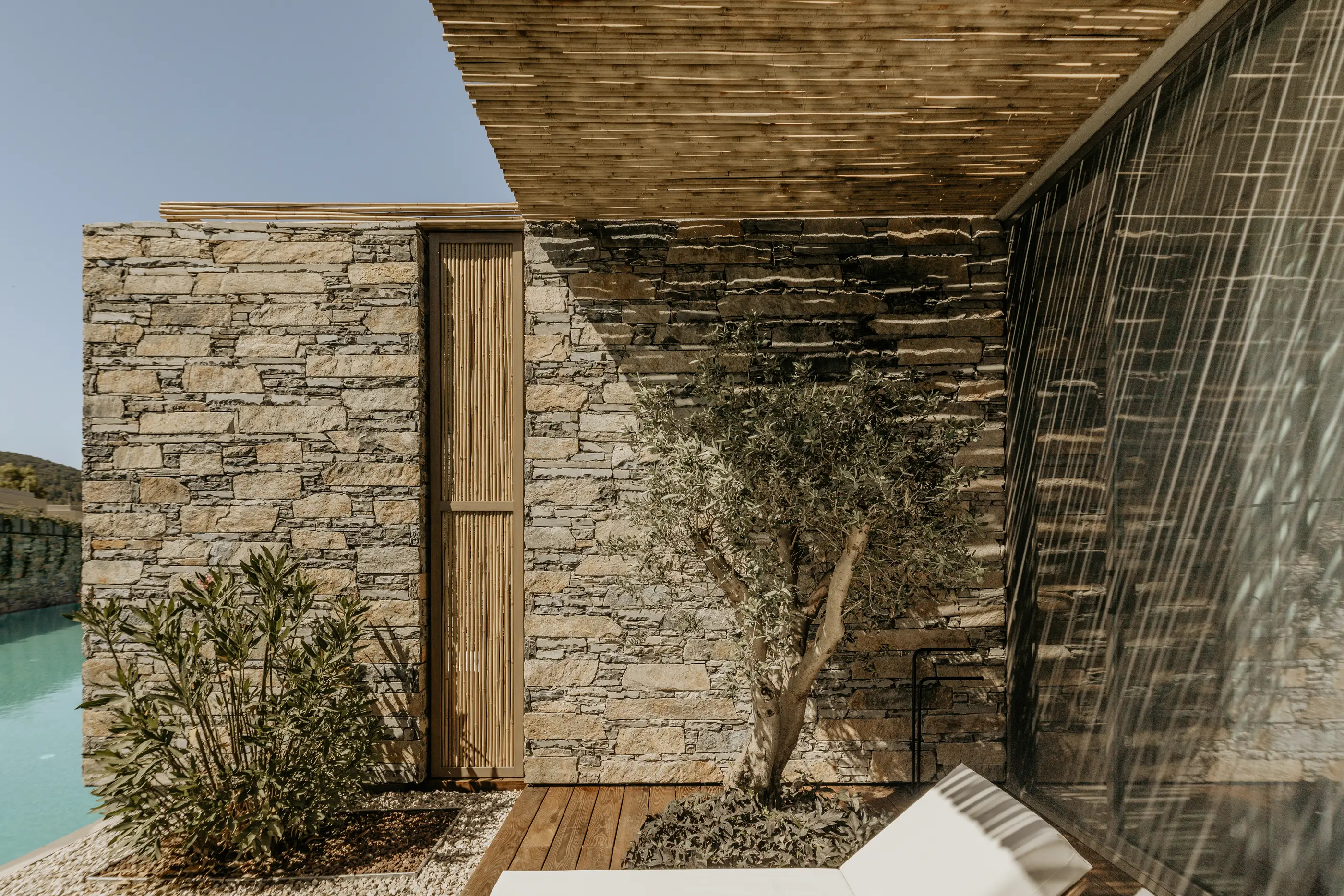

Terrace under a reed canopy with a stone wall and olive tree

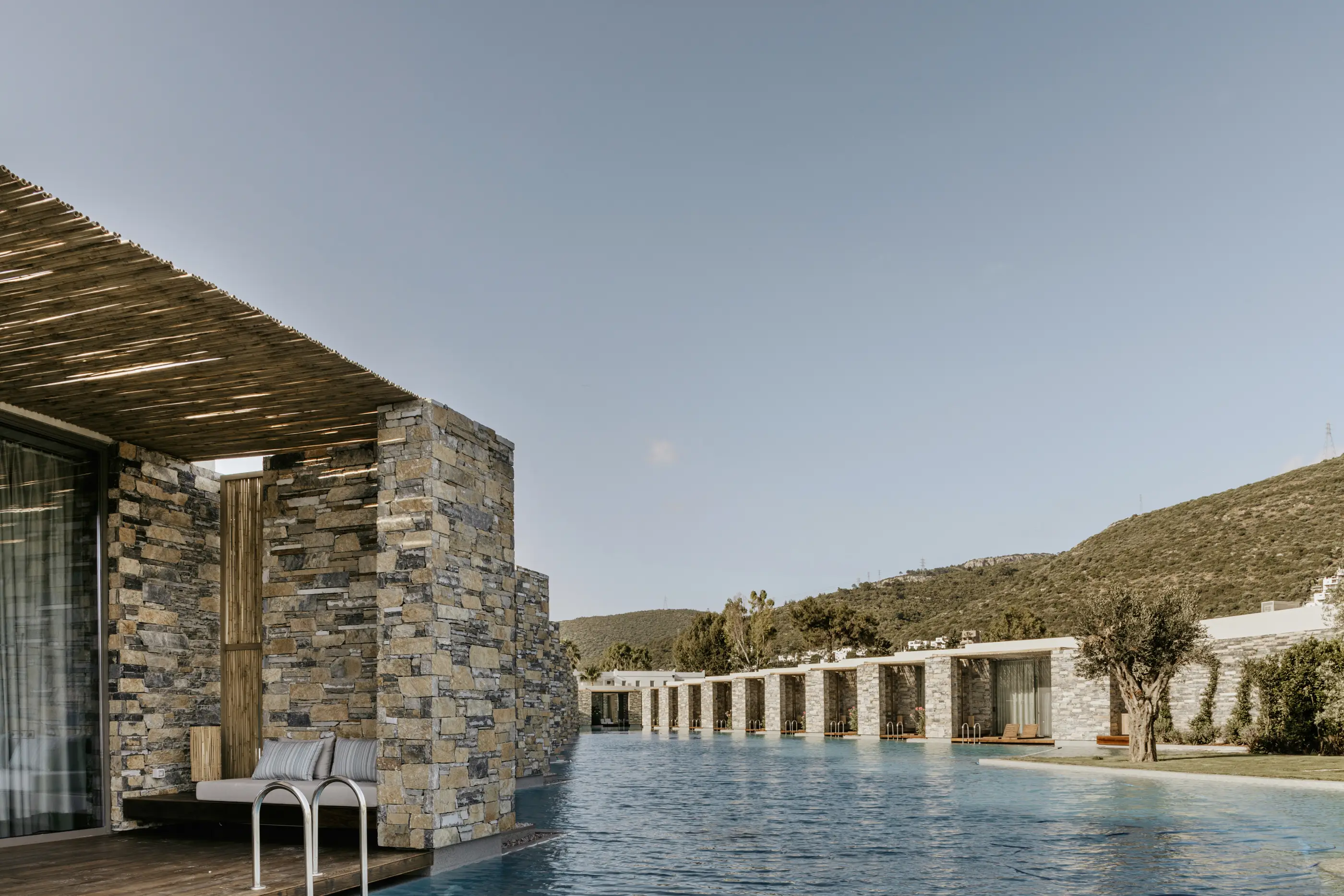

Stone-walled rooms with reed canopies beside the pool

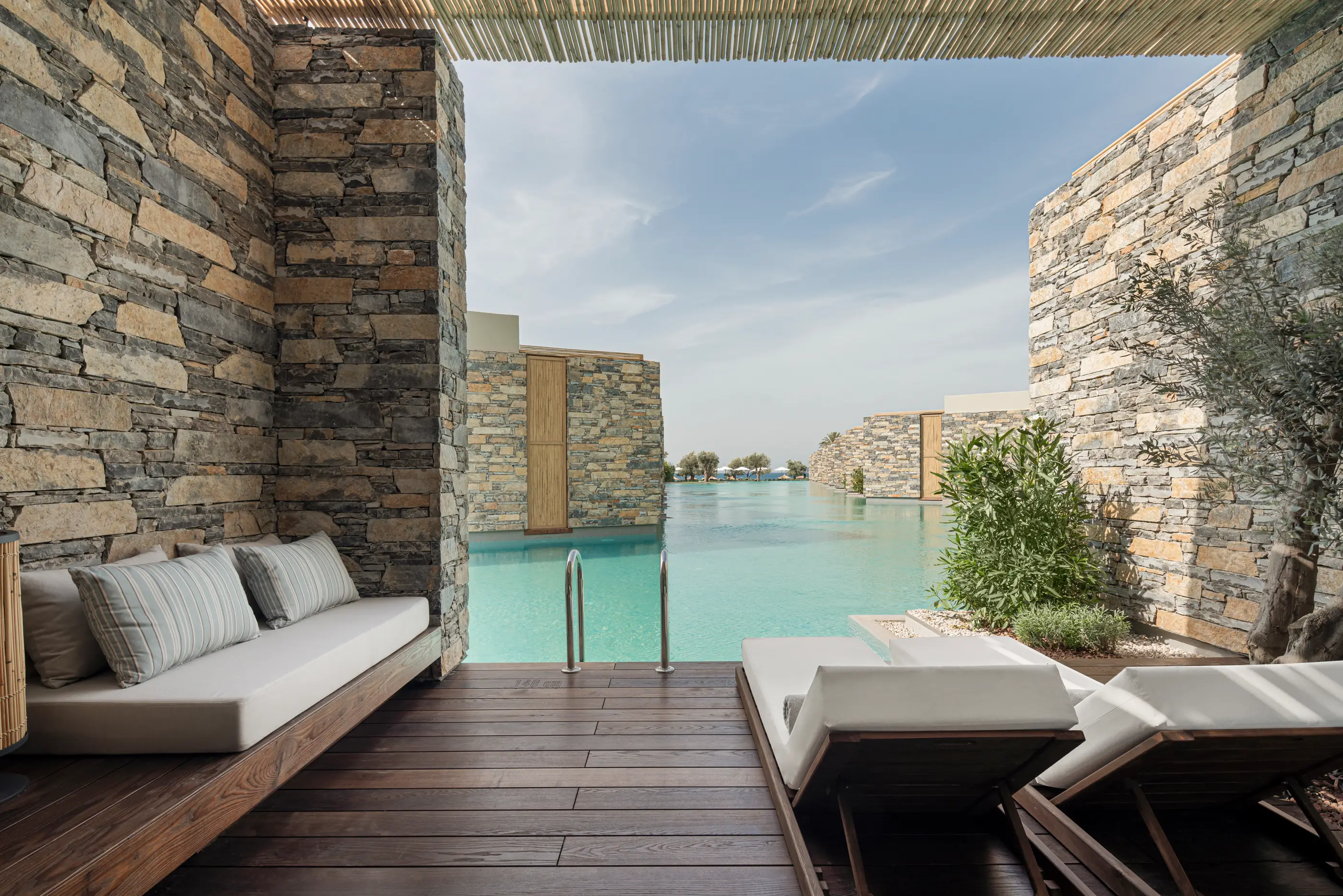

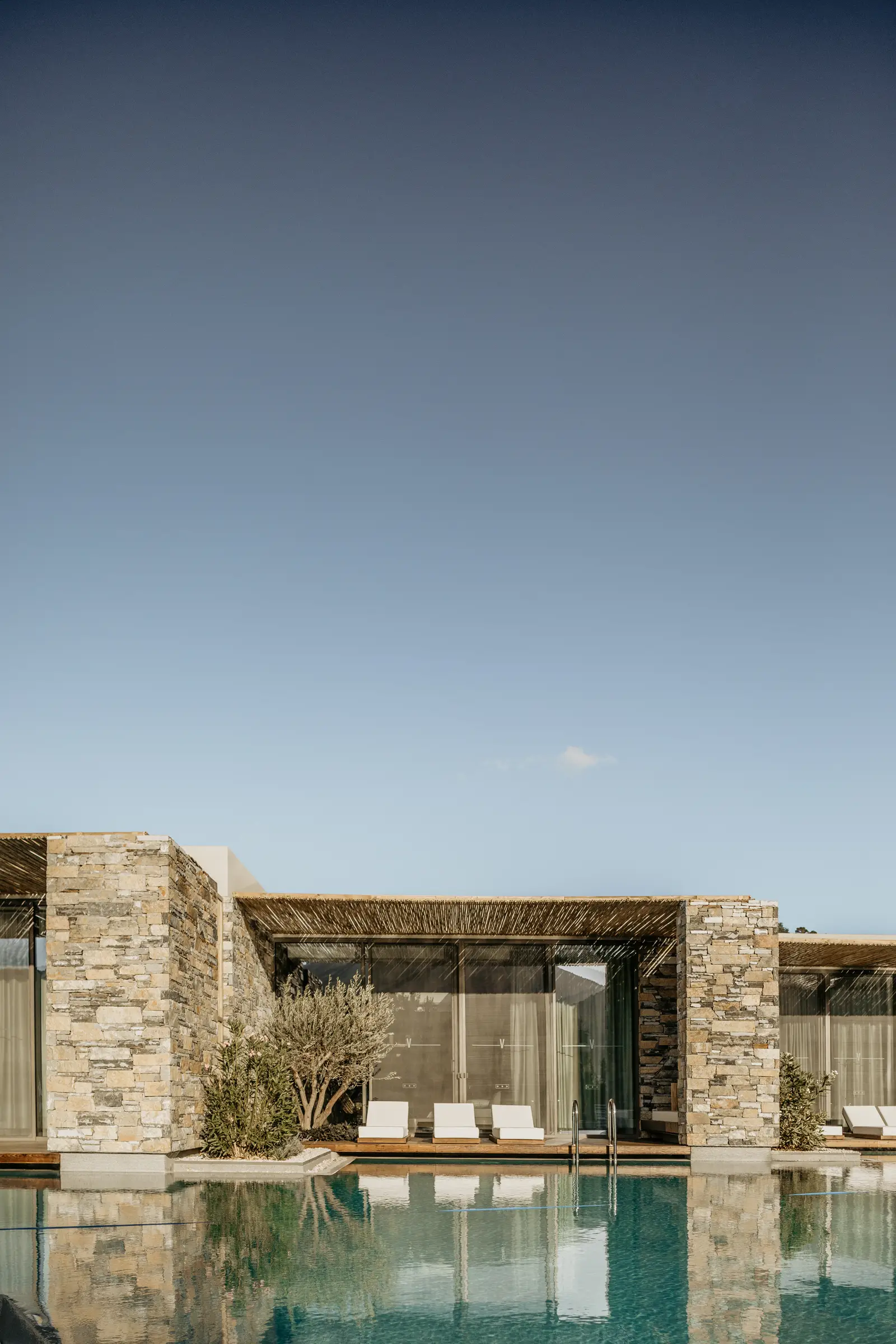

Room terrace with sun loungers under a reed canopy, beside the pool
Room terrace with sun loungers under a reed canopy, beside the pool

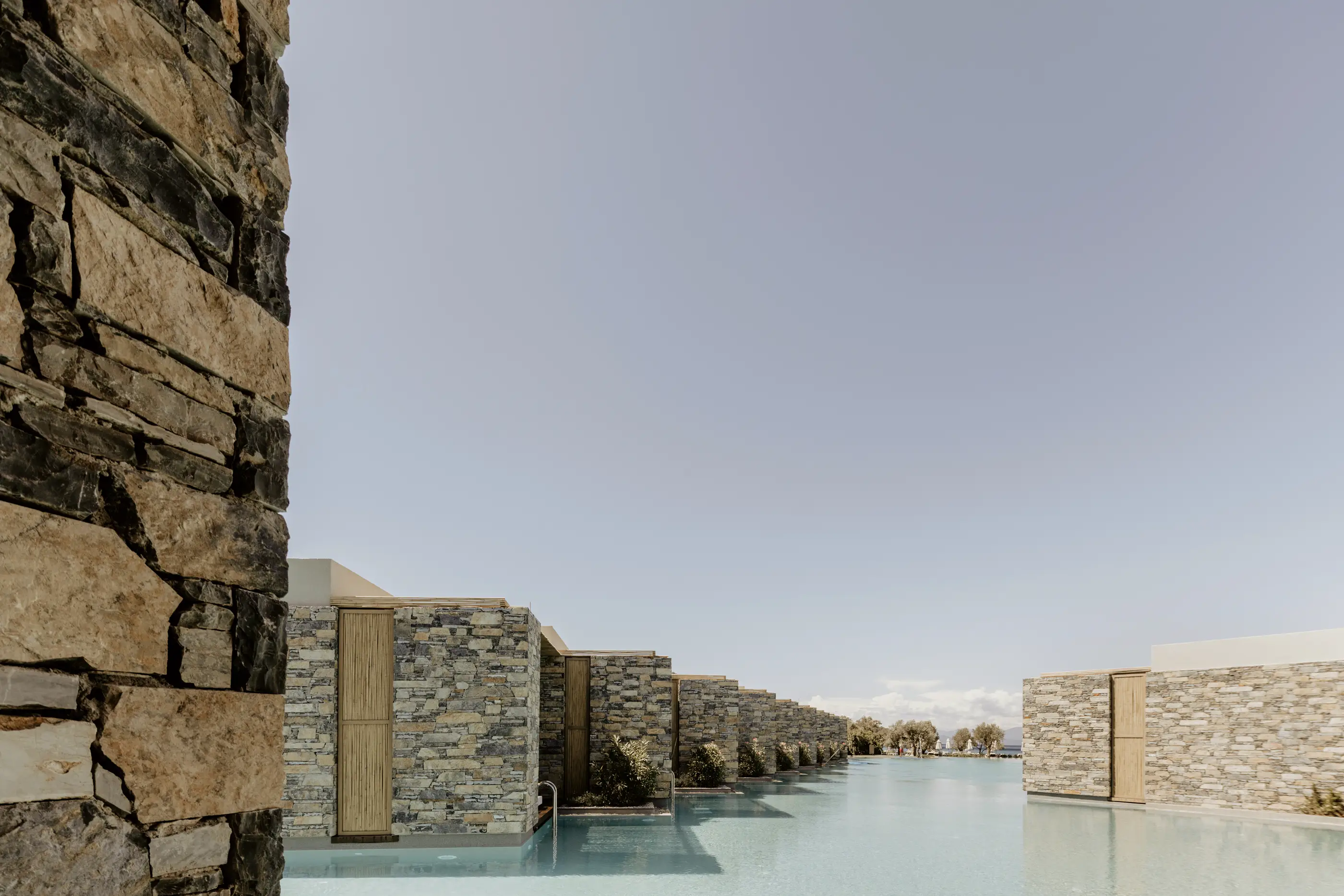

View past a stone wall to the pool and rooms

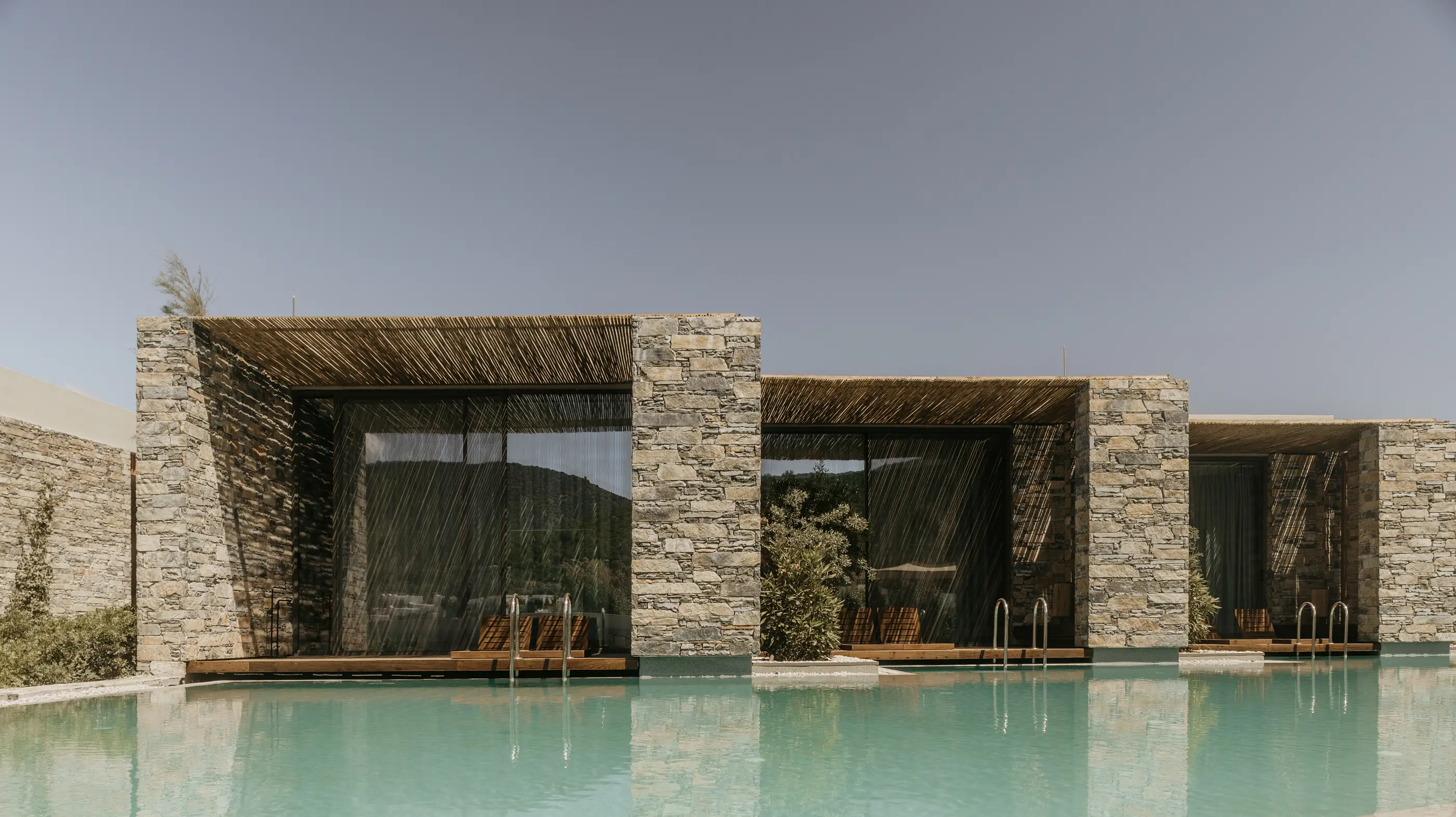

Stone-walled rooms seen across the pool
Poolside rooms under a wide sky
Olive tree with rooms lined along the pool behind
Poolside rooms under a wide sky
Olive tree with rooms lined along the pool behind
Poolside rooms behind an olive tree

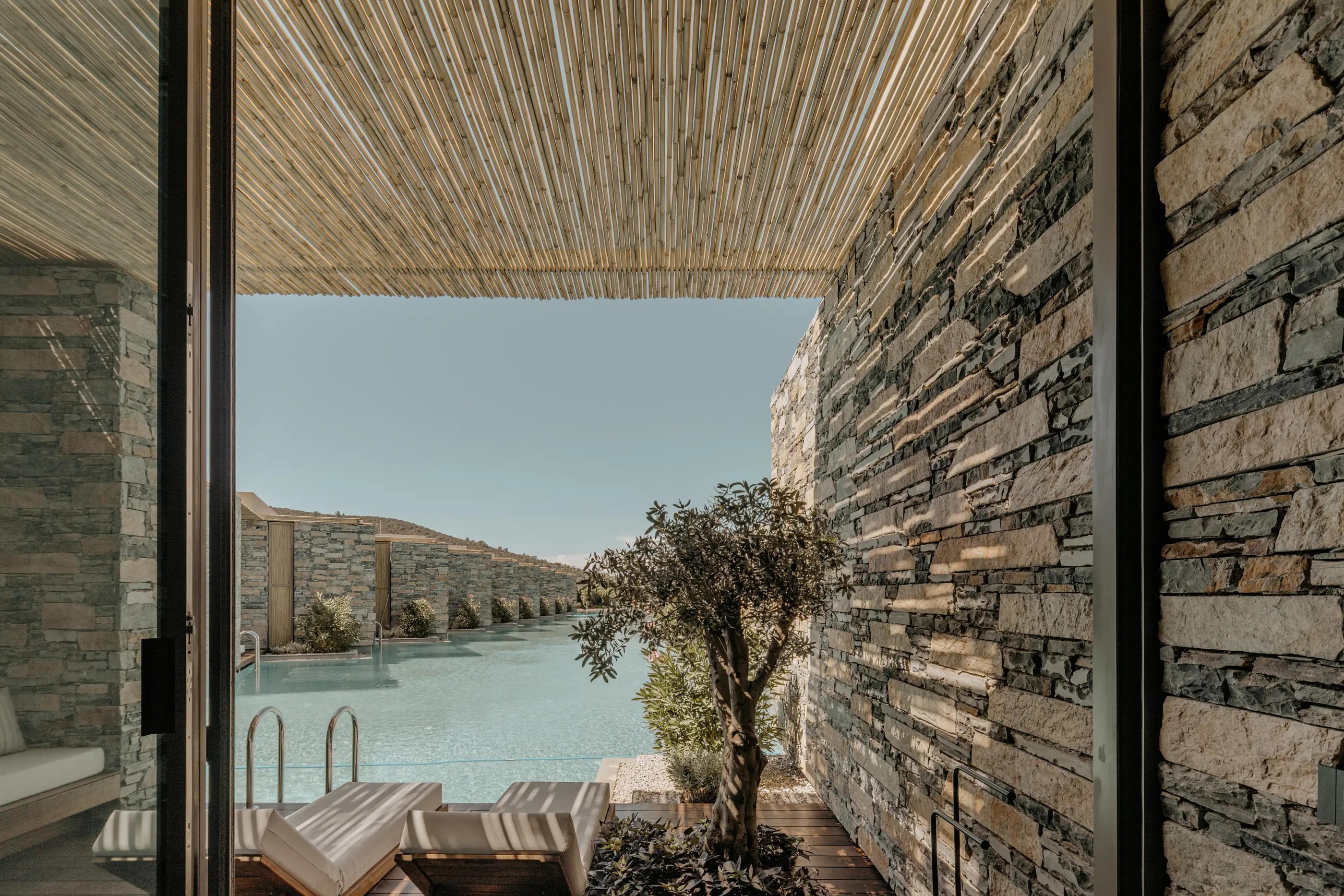

View from a room terrace to the pool, with stone wall and reed ceiling

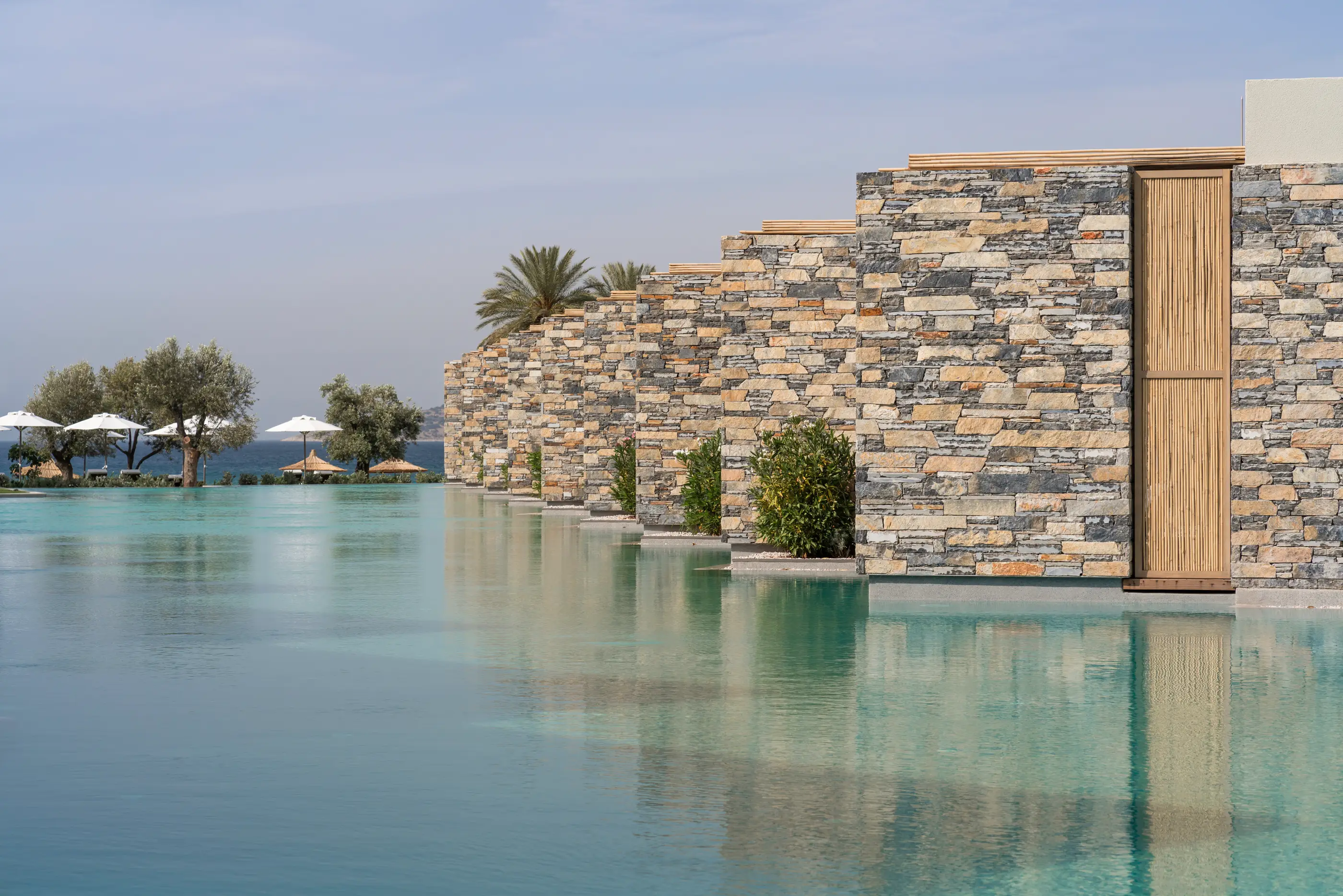

Stone-walled buildings along the pool with a timber door

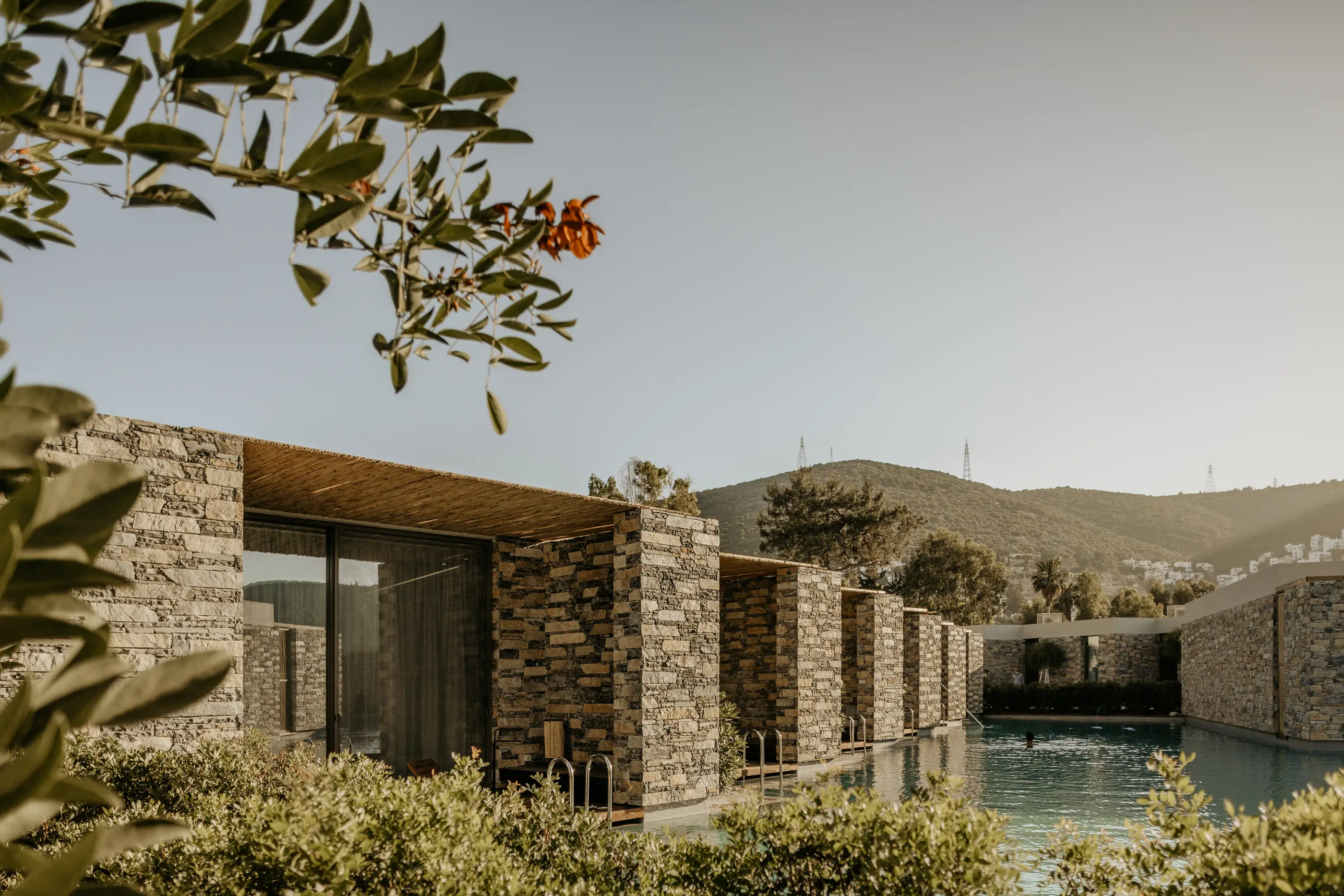

View through pomegranate branches to the stone-walled rooms and hill

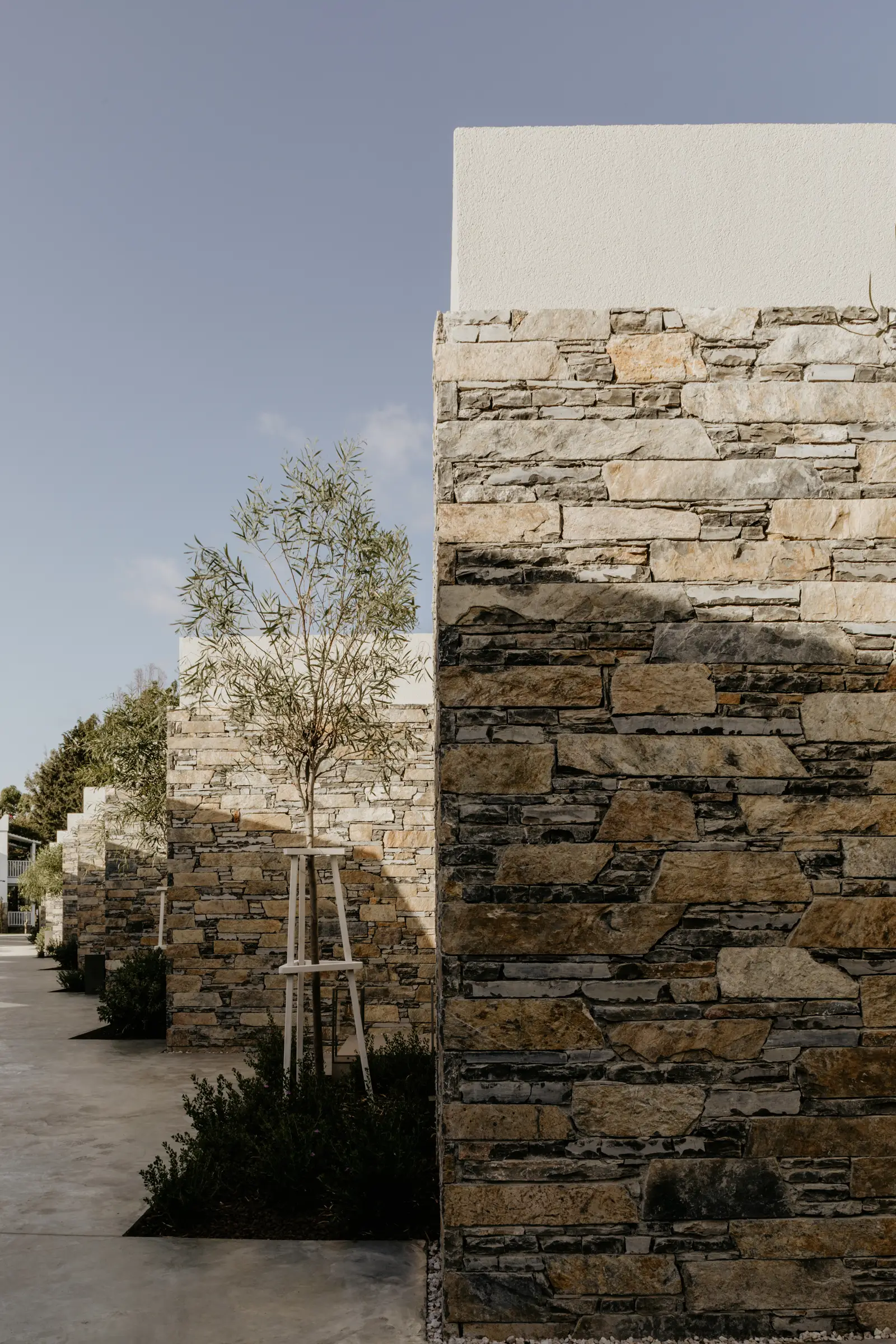

Footpath between stone walls with young trees

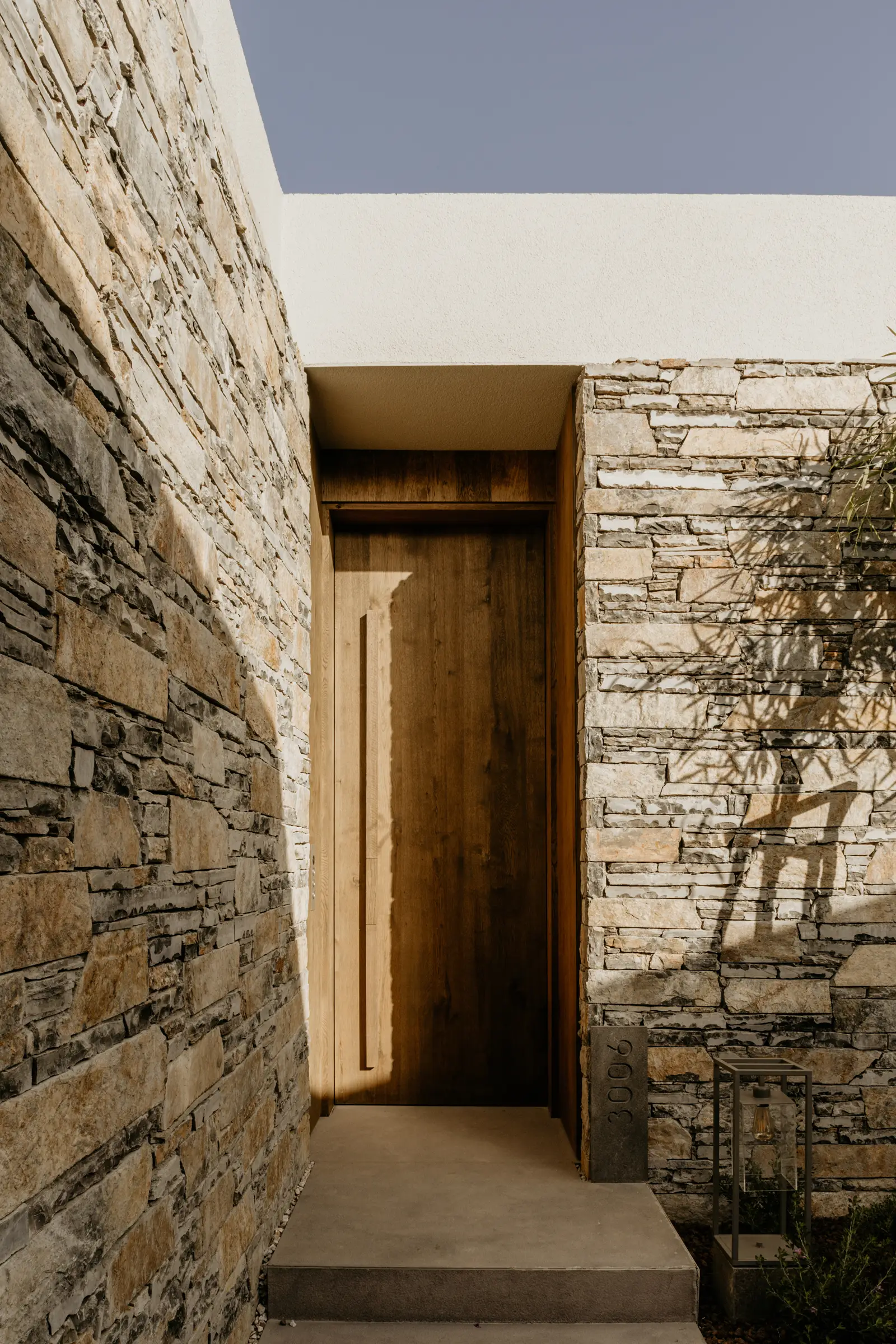

Timber entrance door between stone walls

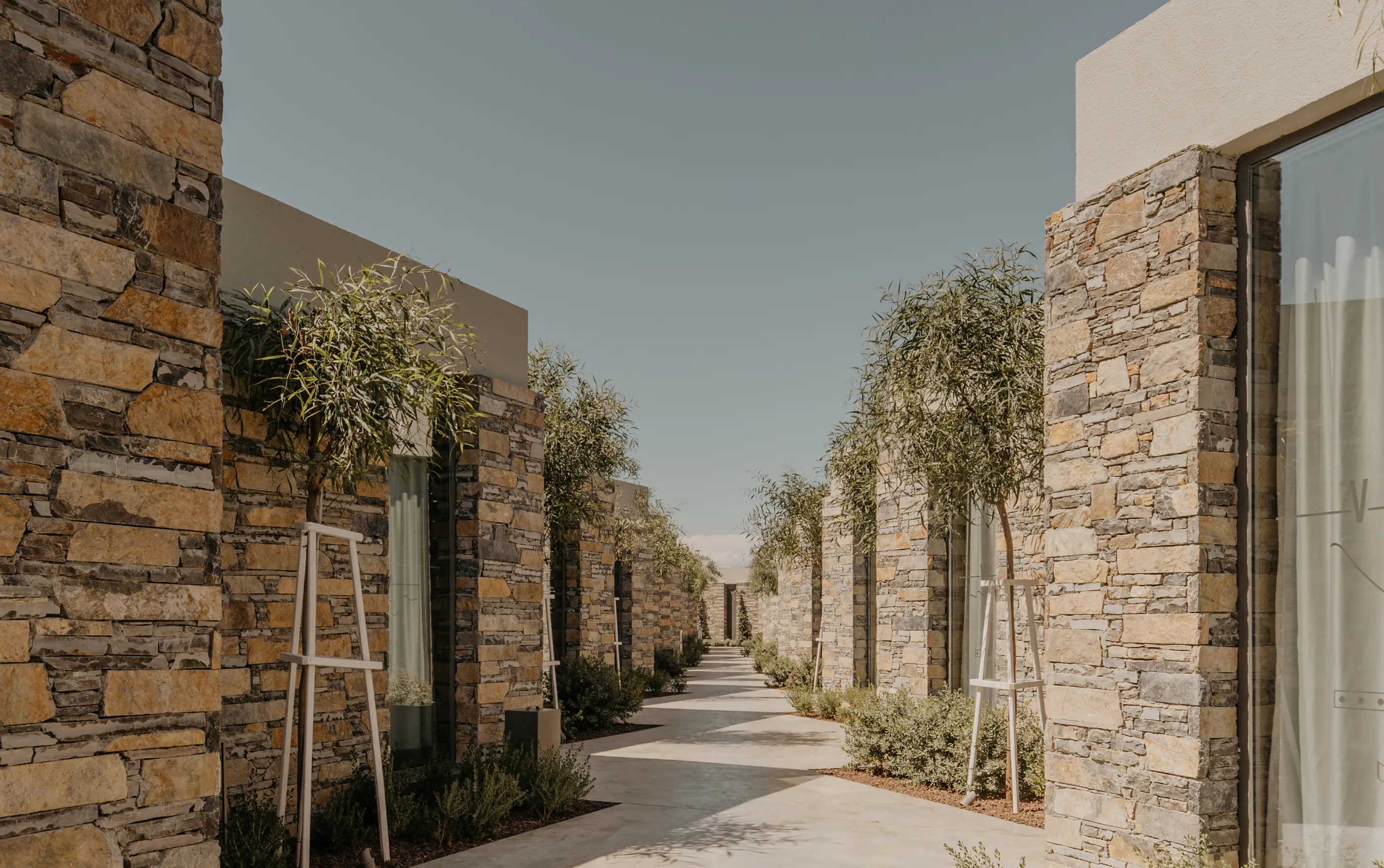

Path and tree between the stone-walled buildings
Timber entrance door between stone walls
Path and tree between the stone-walled buildings

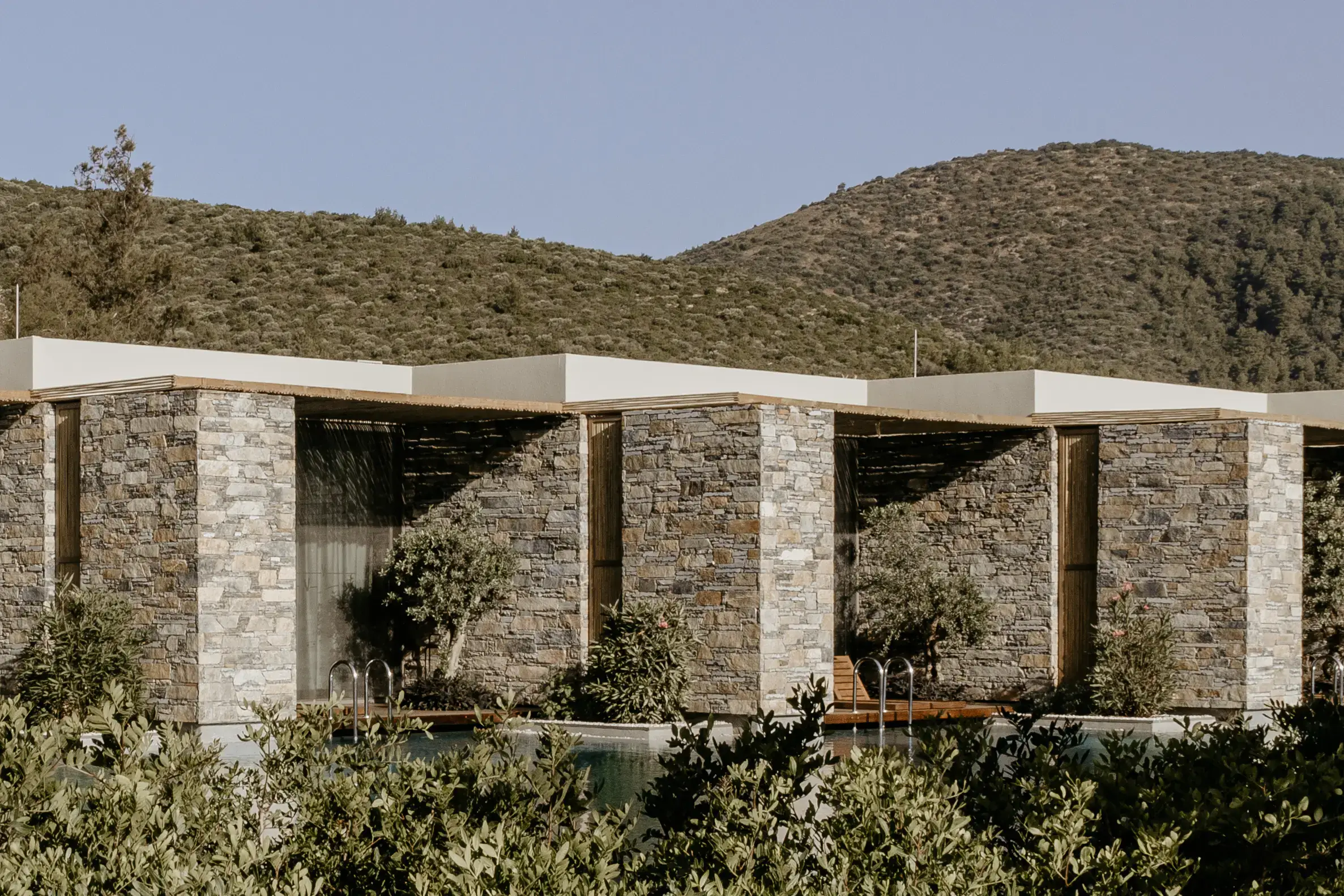

Stone-walled rooms with planting at the foot of the hill
Room terrace with reed canopy and rooms extending along the pool

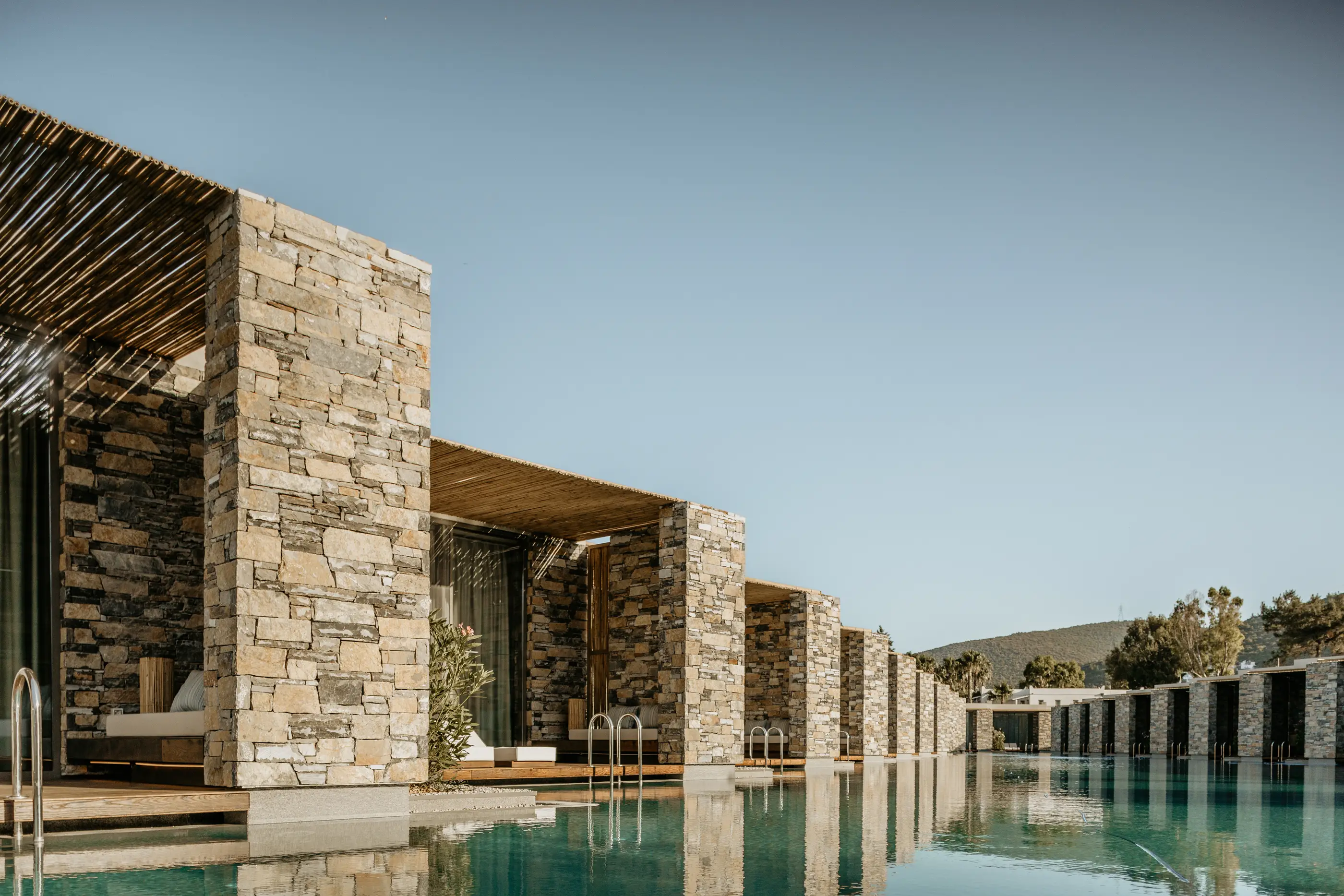

Stone-walled rooms lined along the pool edge
General view of the pool and the rooms along it

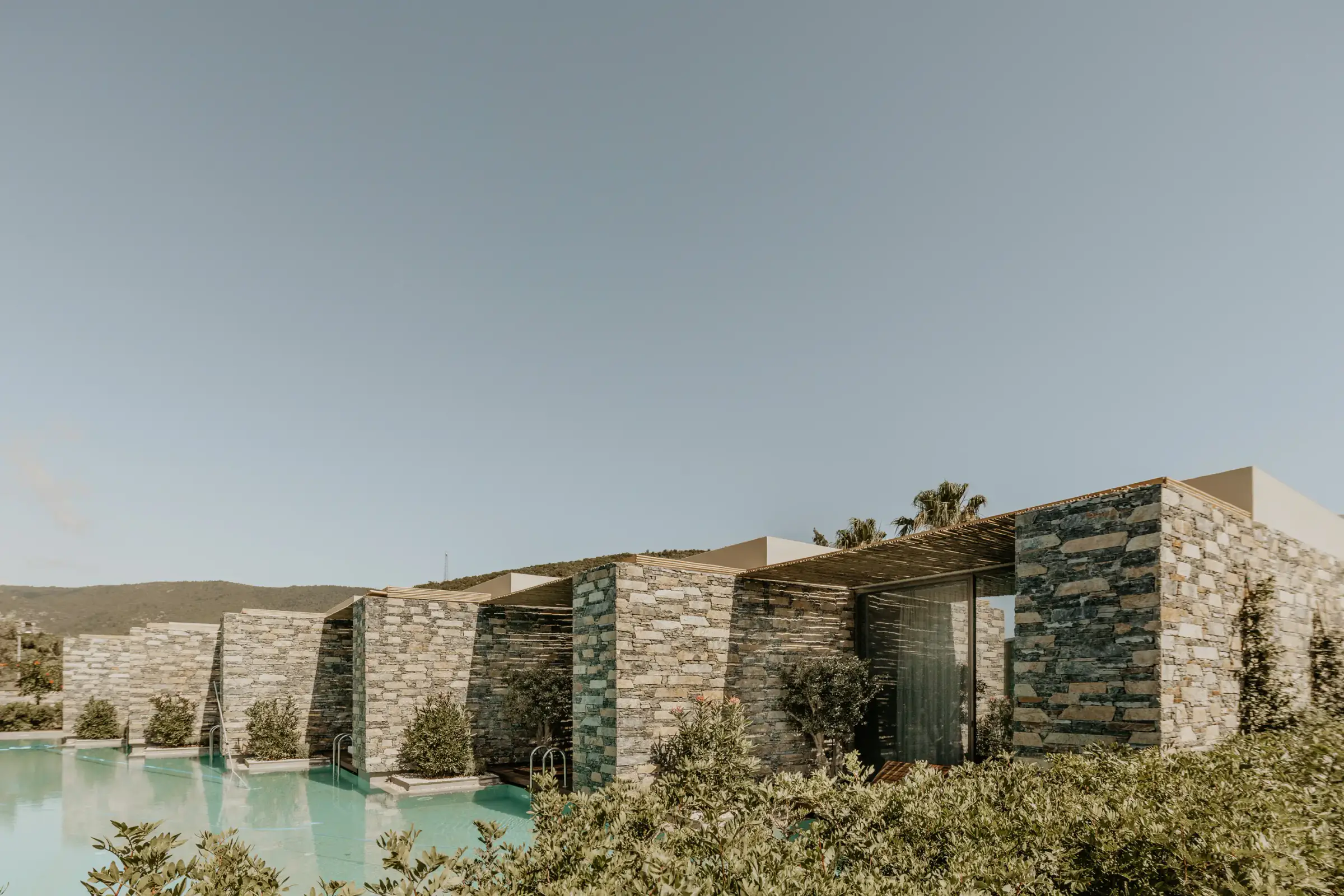

Poolside rooms seen beyond planting

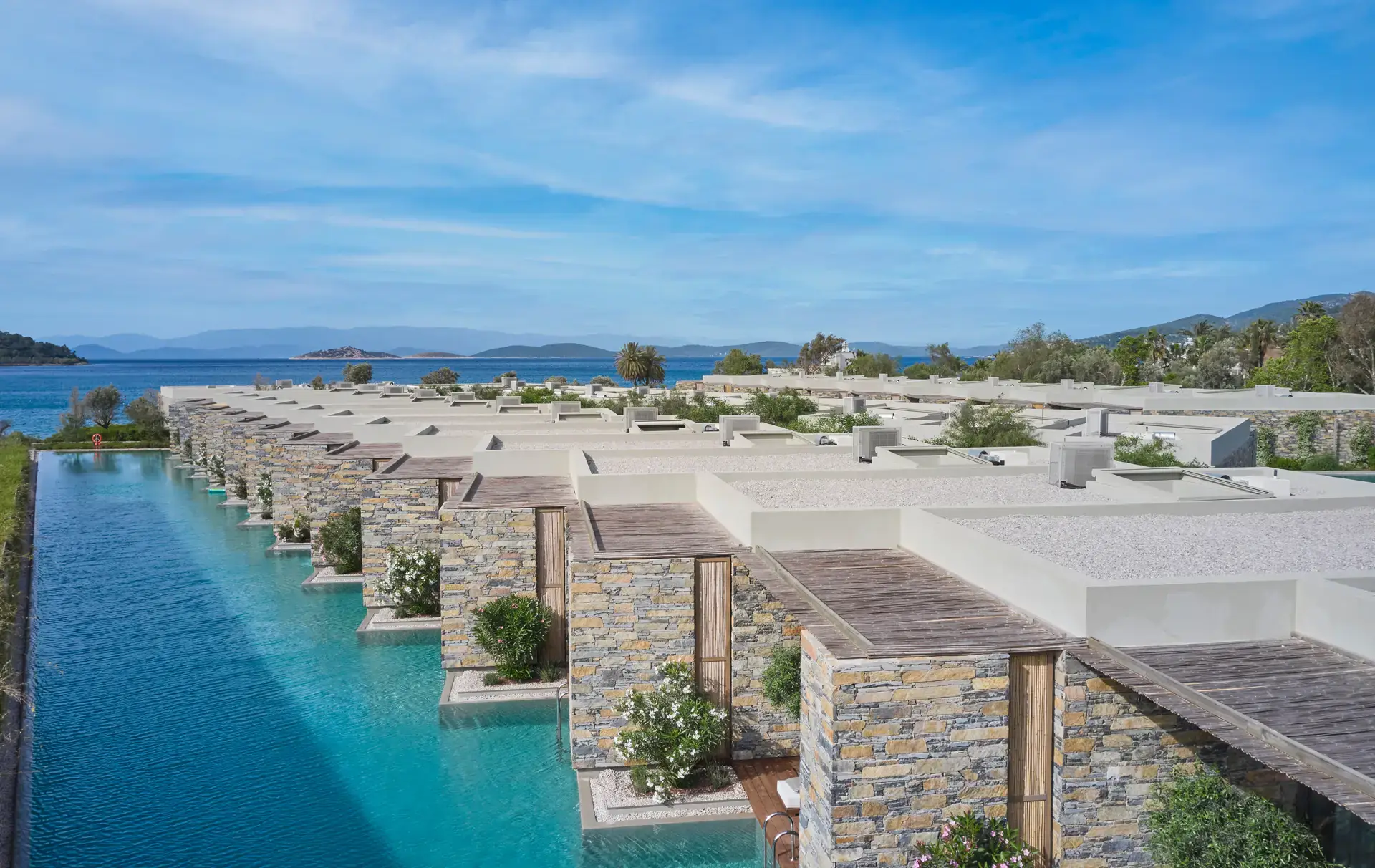

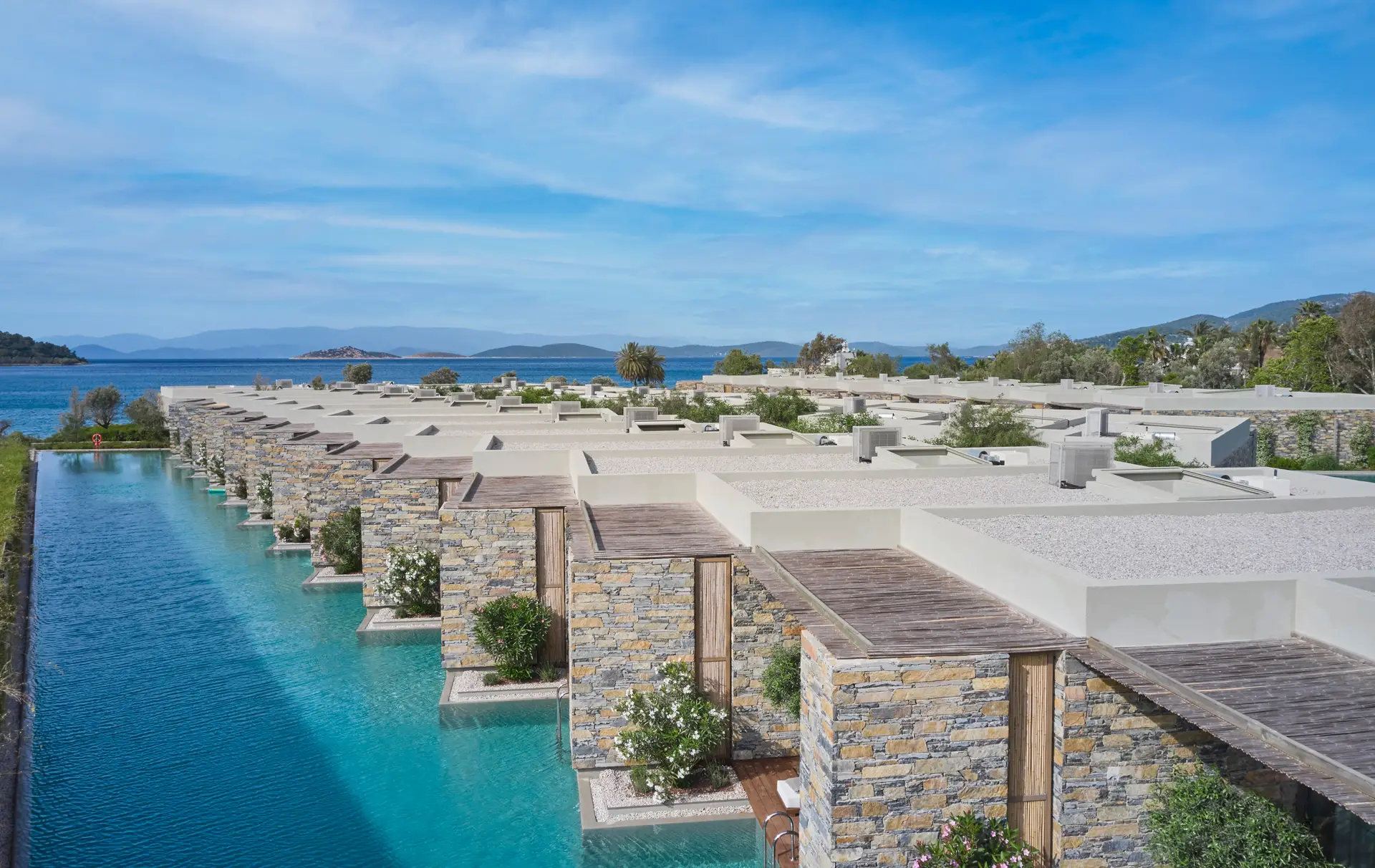

Aerial view of the rooms along the pool with the sea beyond

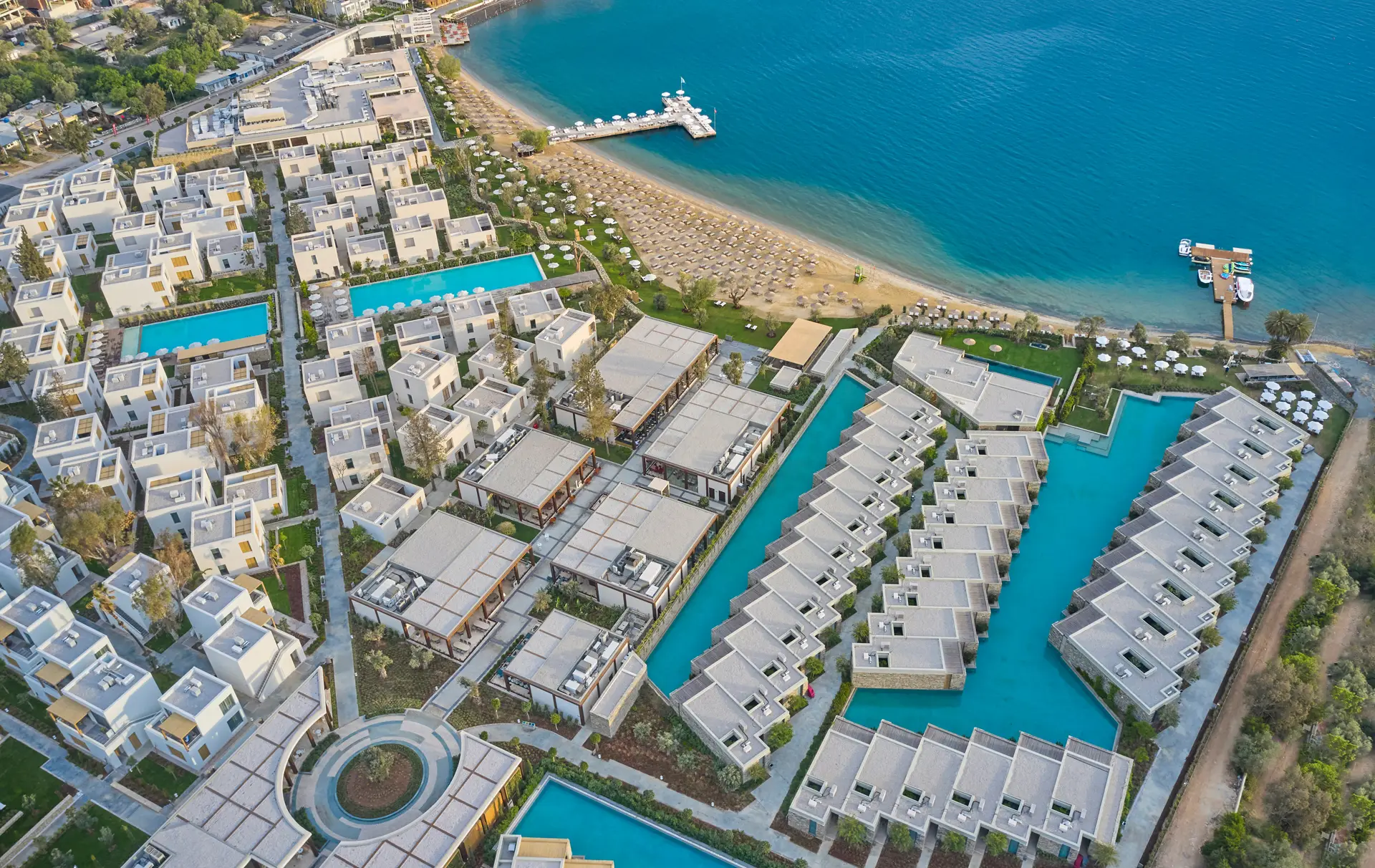

Aerial view of the resort, beach and pier

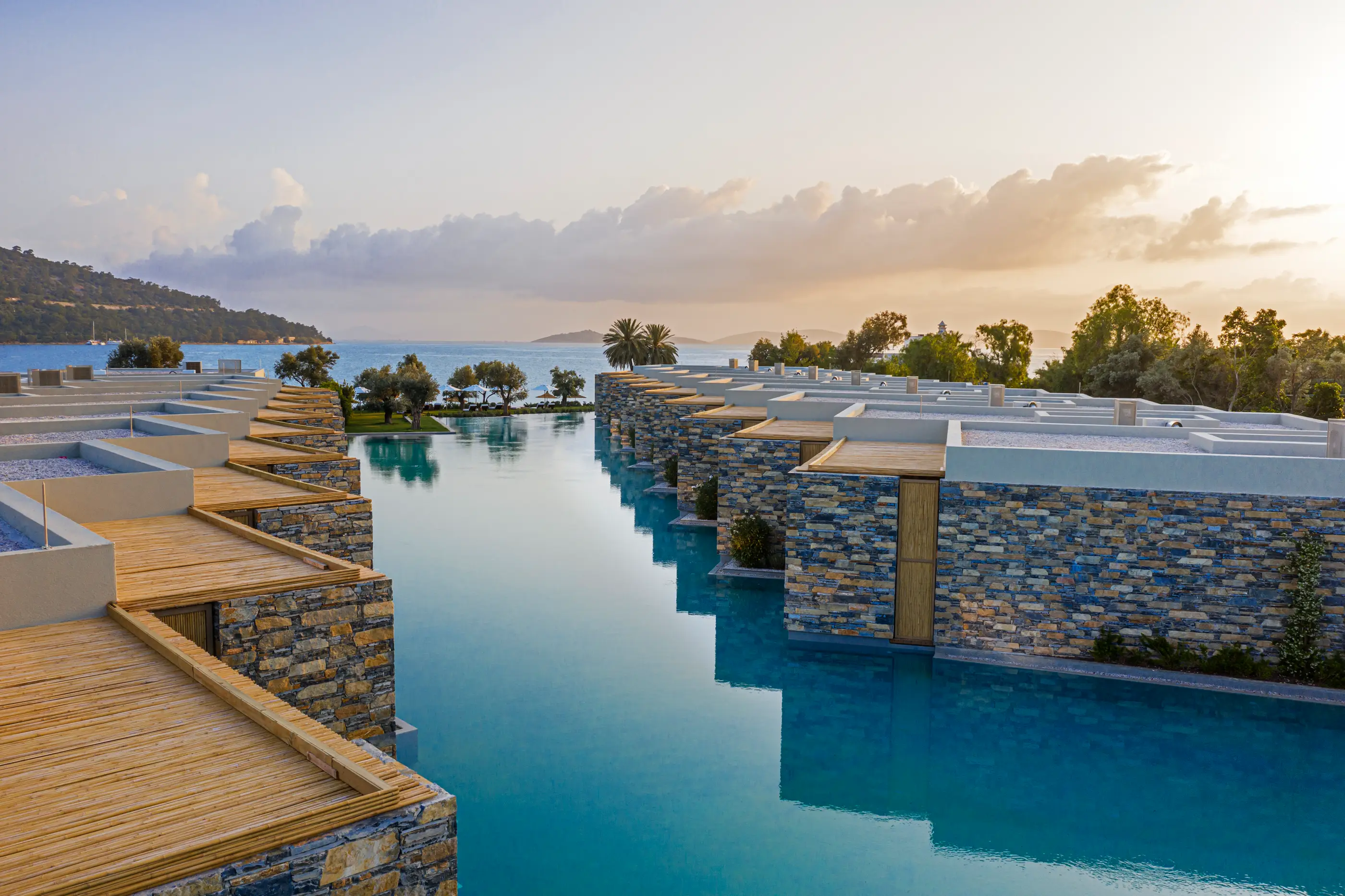

Poolside rooms and the sea at sunset

SECTION

Interior

Stone-walled bedroom with timber wardrobes and a ceiling fan

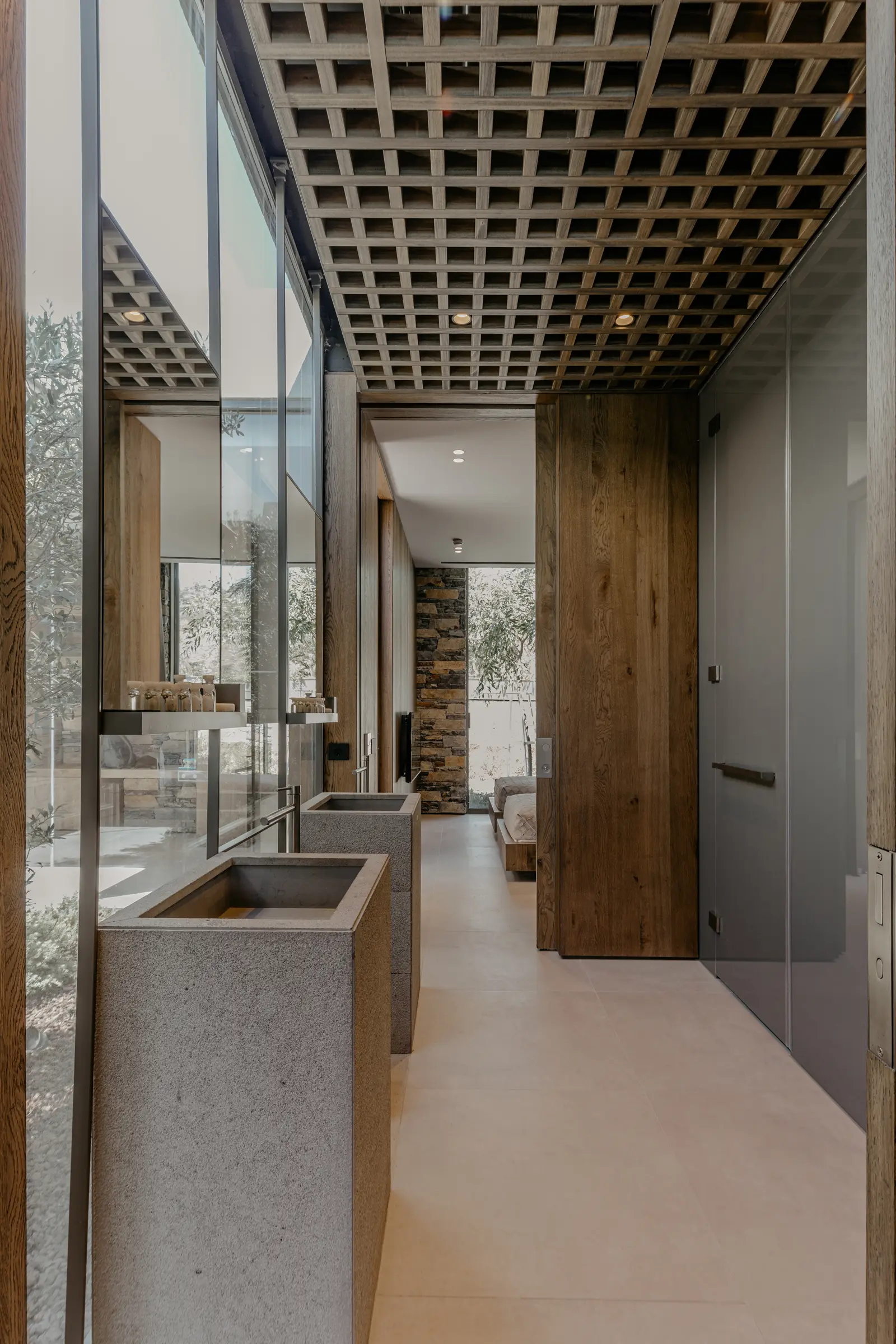

Entrance hall with a timber coffered ceiling and washbasin
Entrance hall with a timber coffered ceiling and washbasin

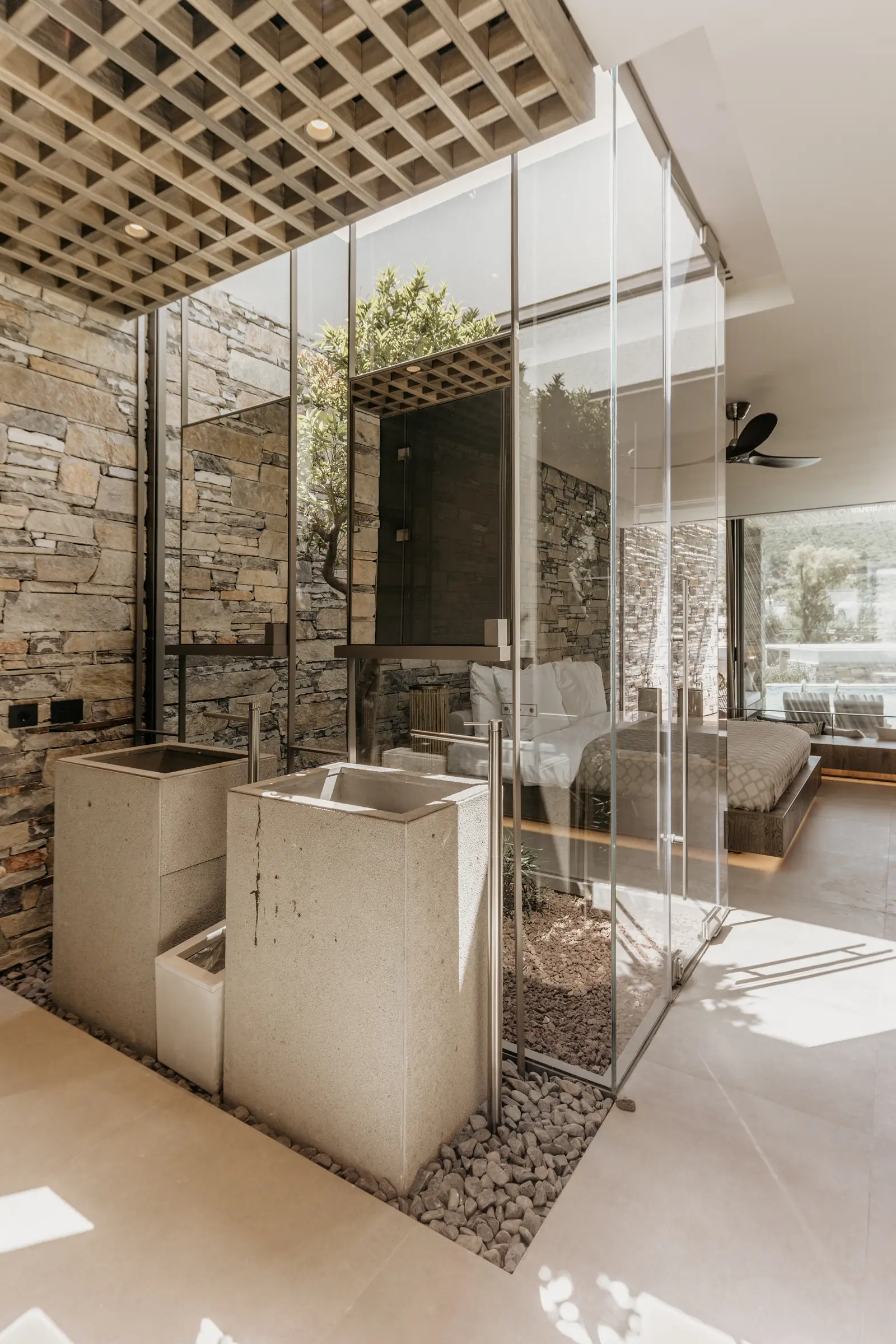

Glass-partitioned bathroom with stone wall and the bedroom beyond

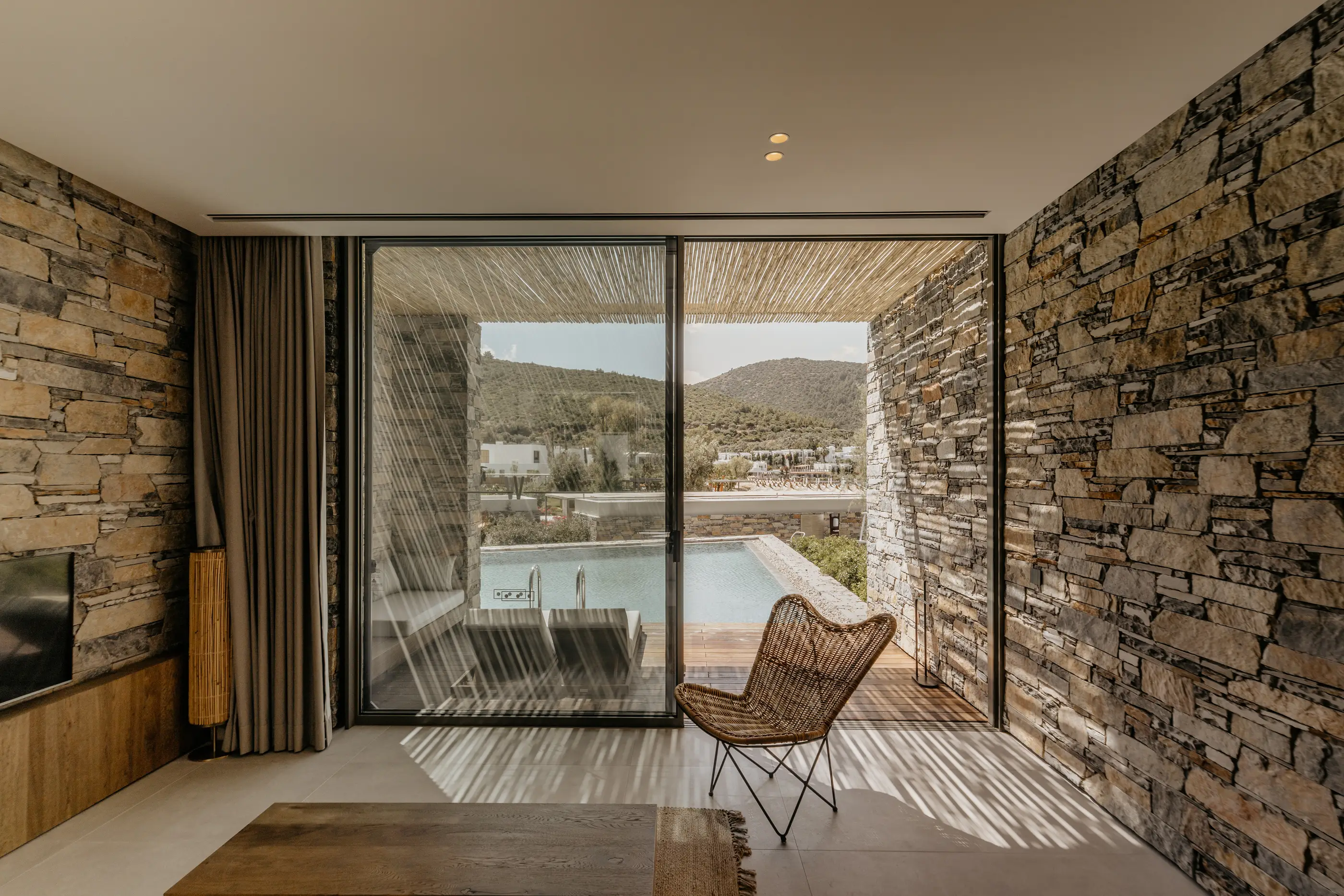

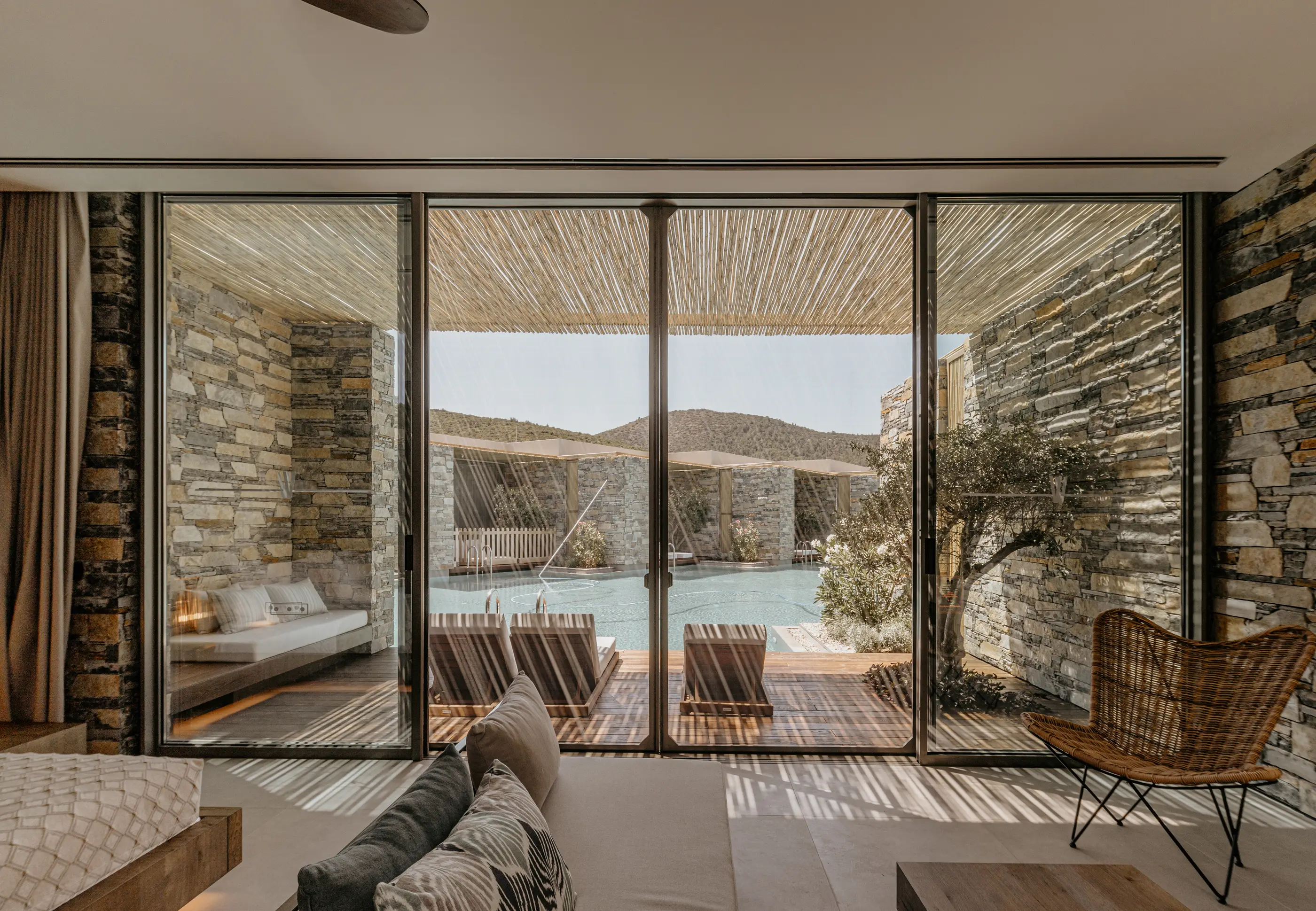

View from the room to the terrace and pool, with stone walls and a rattan chair
Timber-clad bathroom with washbasin counter
View of the pool from a terrace between stone walls

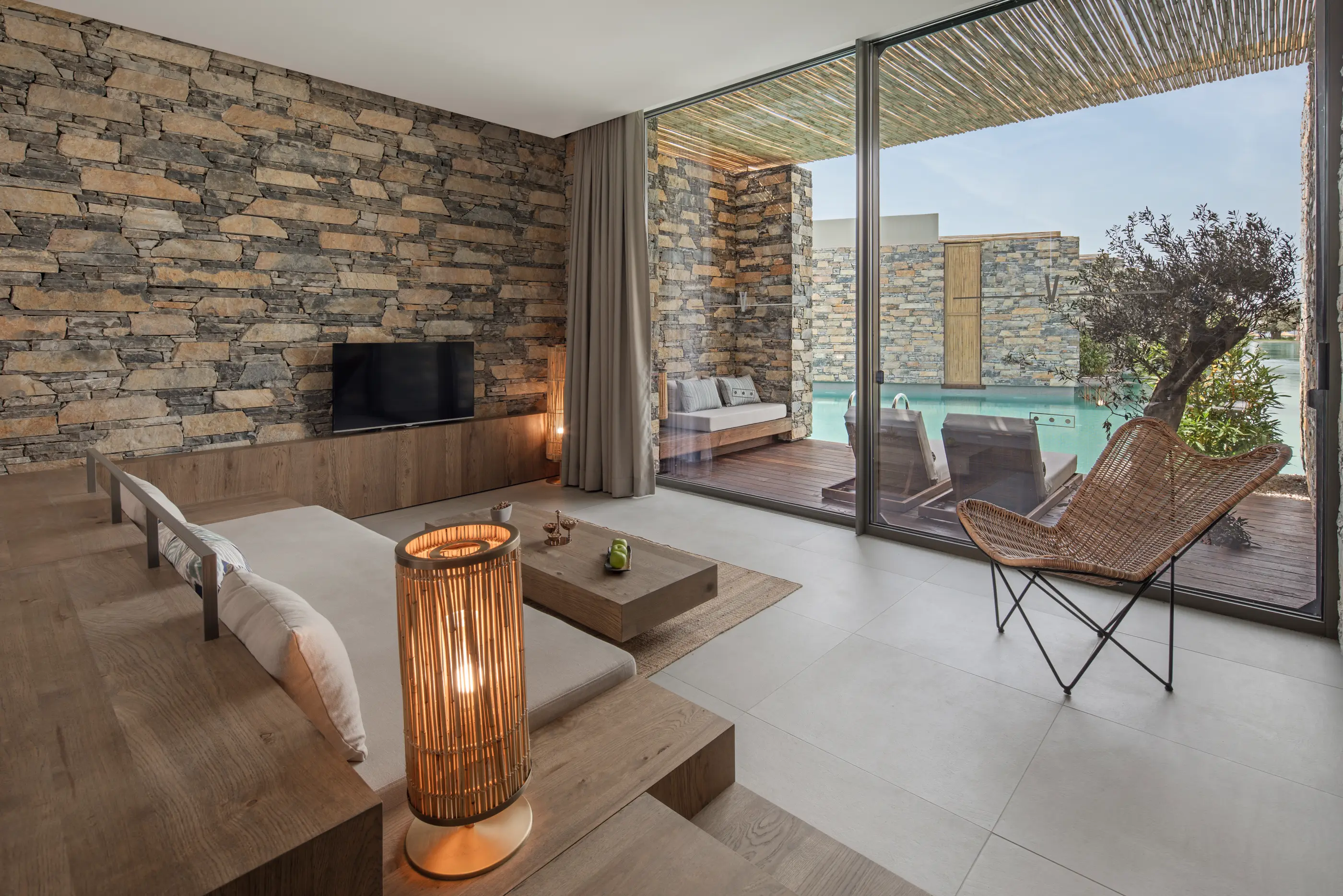

View from the room to the terrace, with seating and a rattan chair

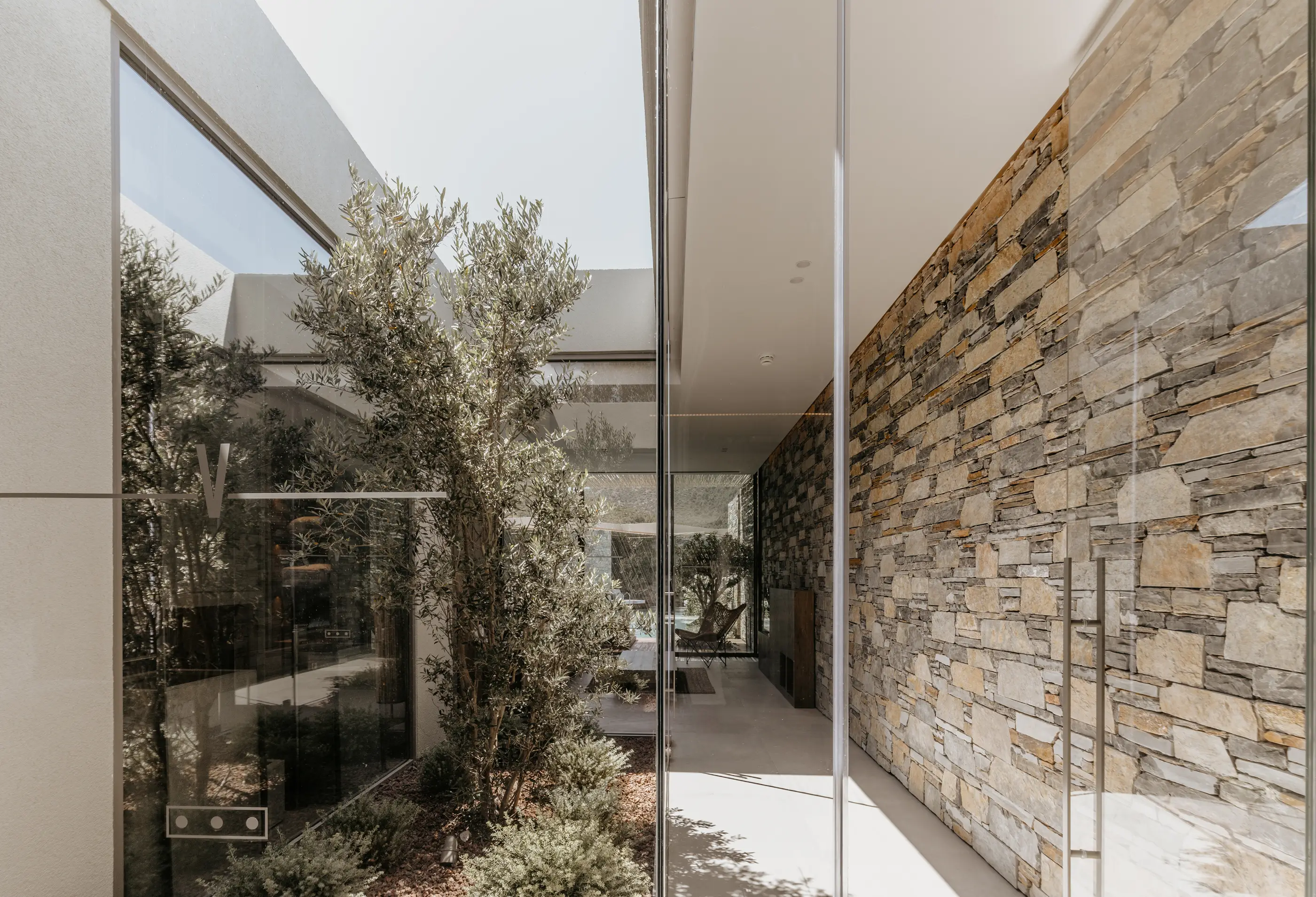

Olive tree in a glass-walled inner courtyard beside a stone wall

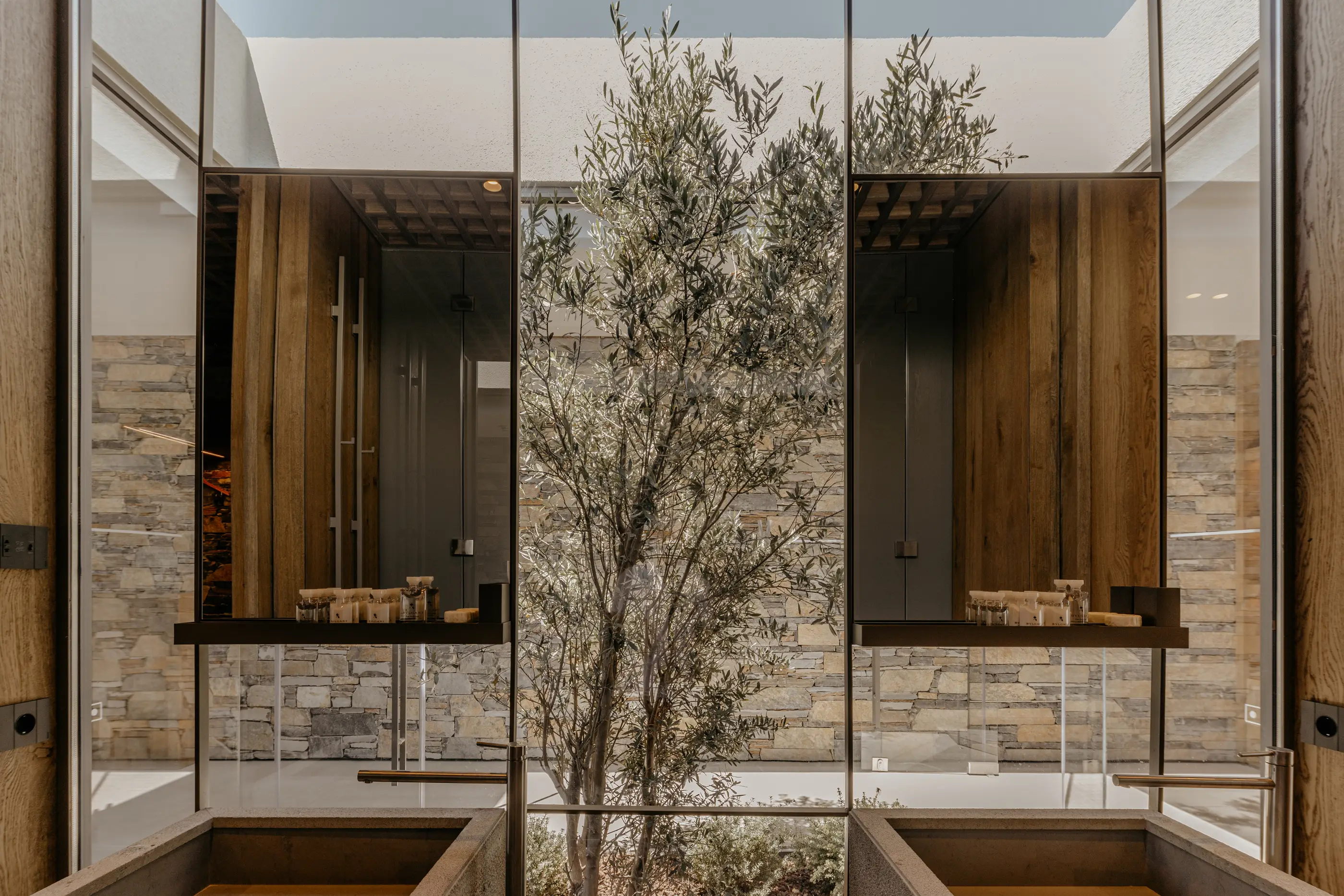

Tree in the inner courtyard flanked by timber washbasin units
Stone-walled bedroom with glass doors opening onto the terrace

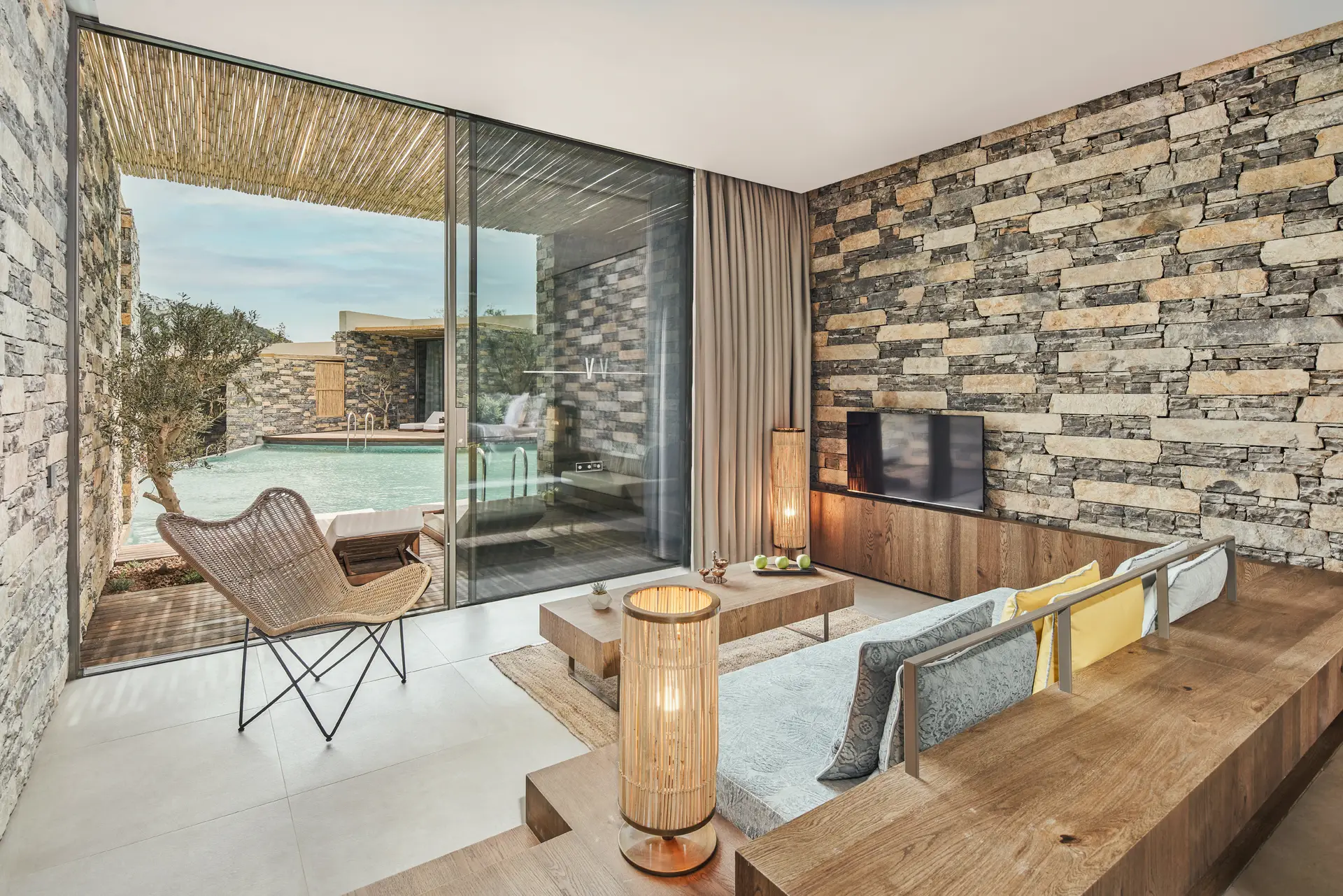

Seating area with stone wall, floor lamp and a view of the pool
Seating corner of the room and the terrace opening onto the pool

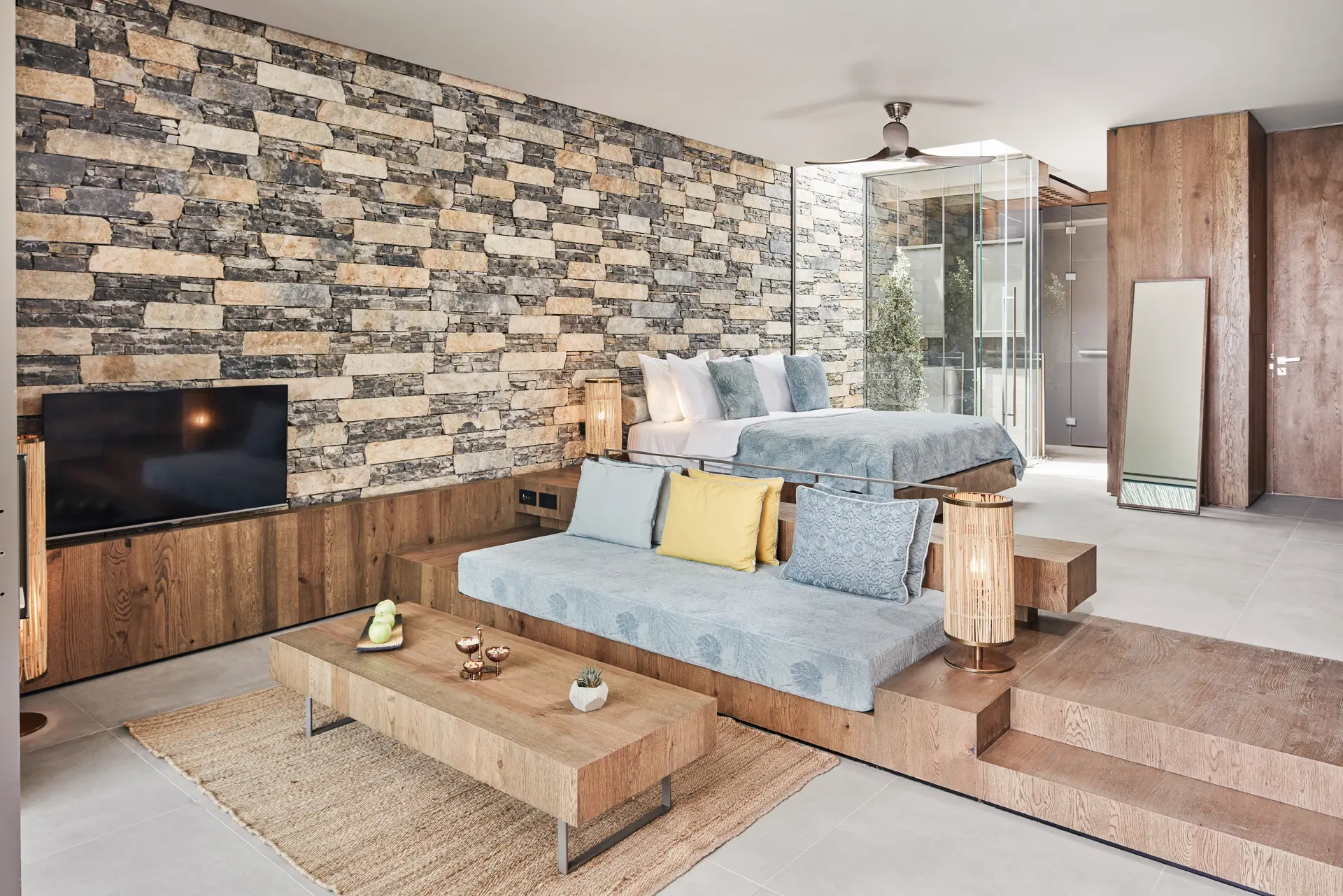

Stone-walled room with bed, seating platform and timber coffee table

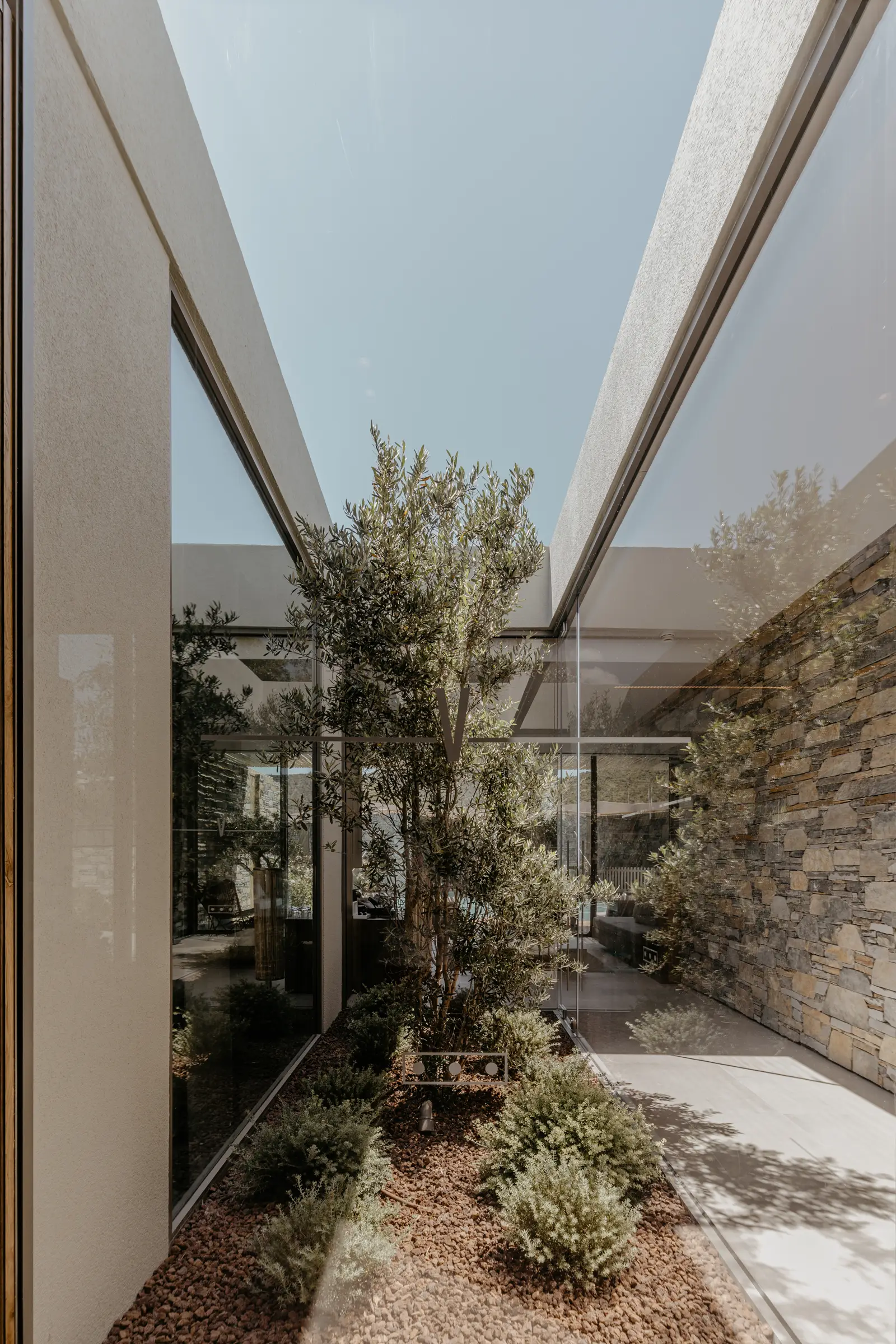

Glass-walled inner courtyard with a tree
Narrow inner courtyard with planting between glass walls
Glass-walled inner courtyard with a tree
Narrow inner courtyard with planting between glass walls

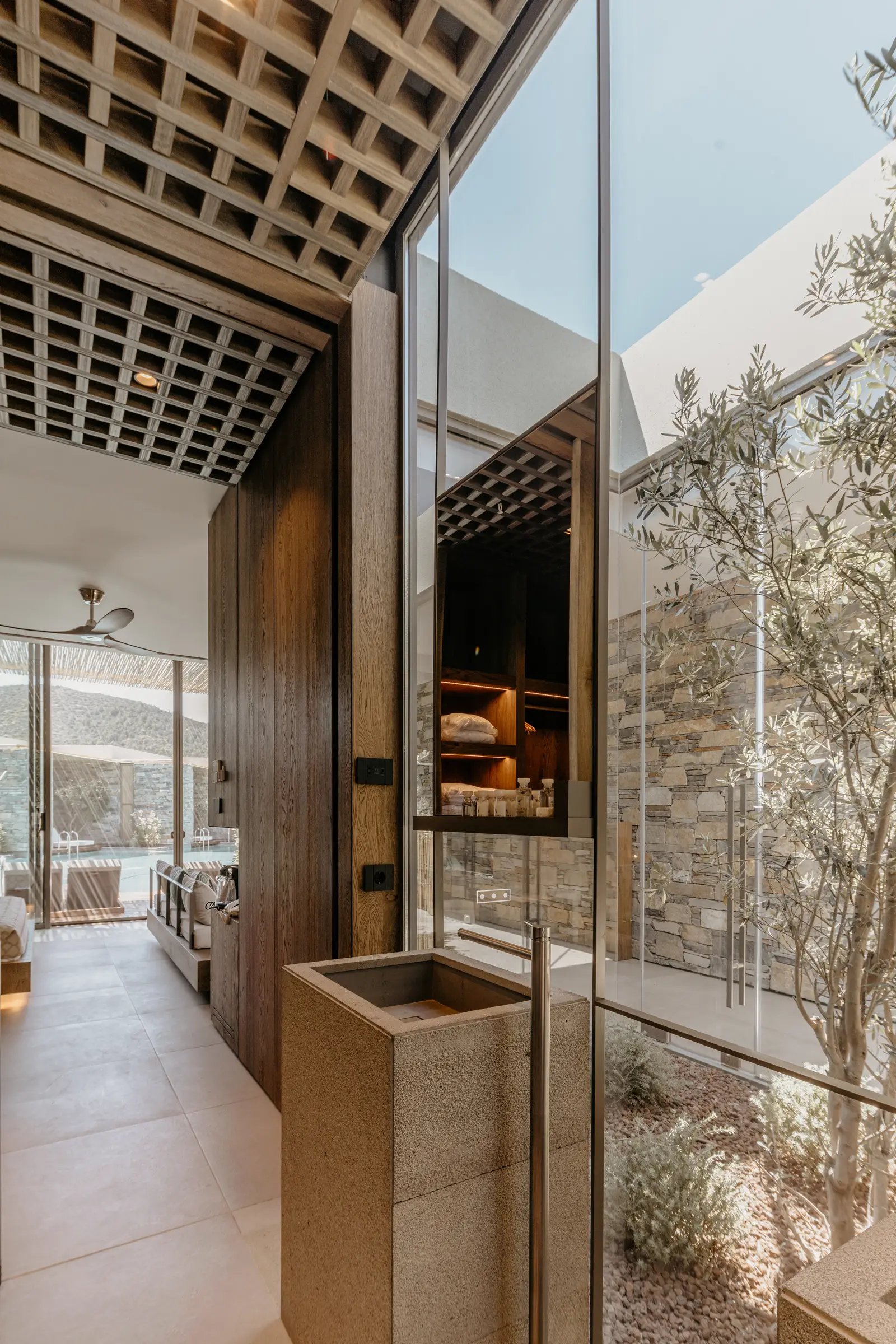

Timber coffered ceiling, washbasin and a tree behind the glass wall

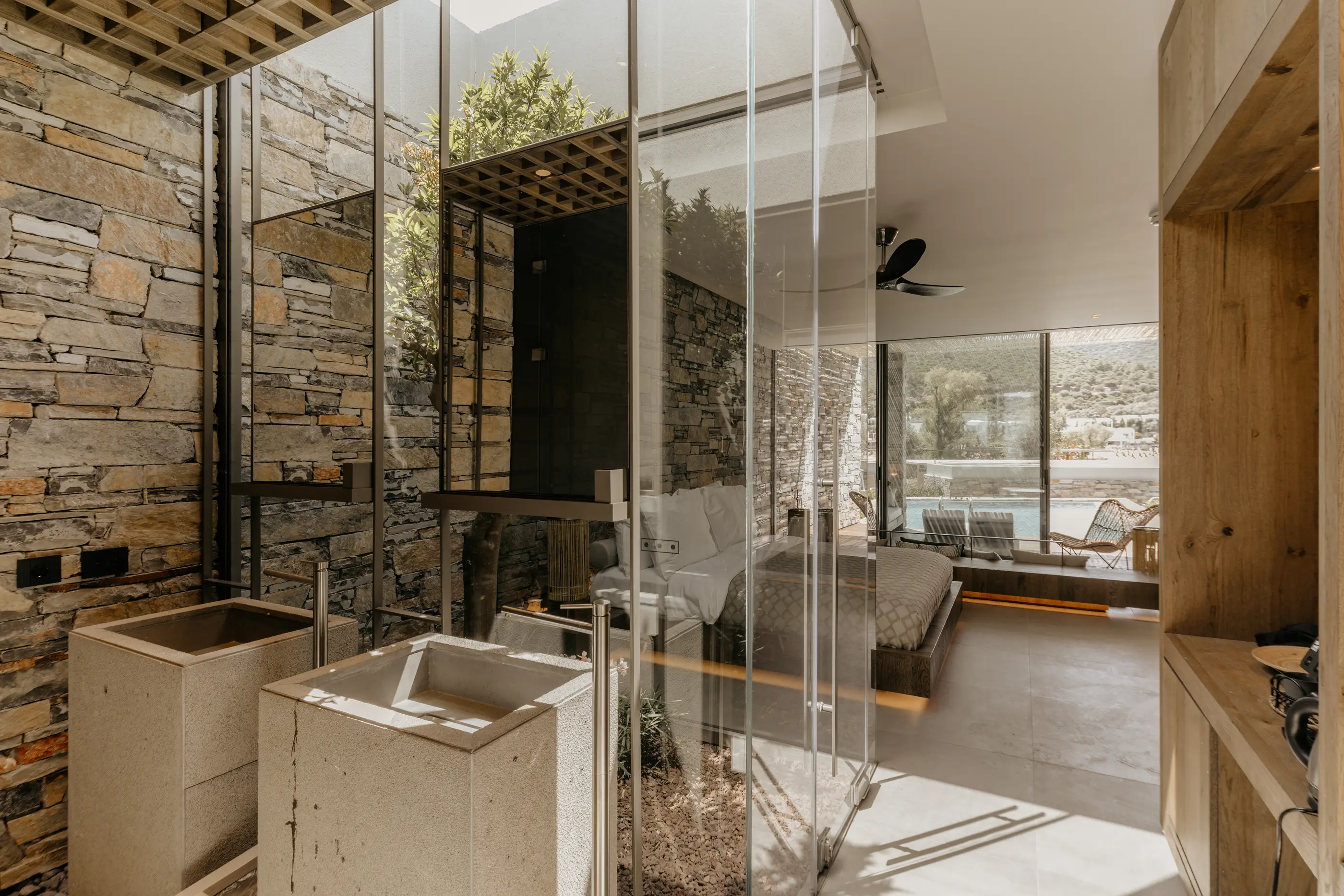

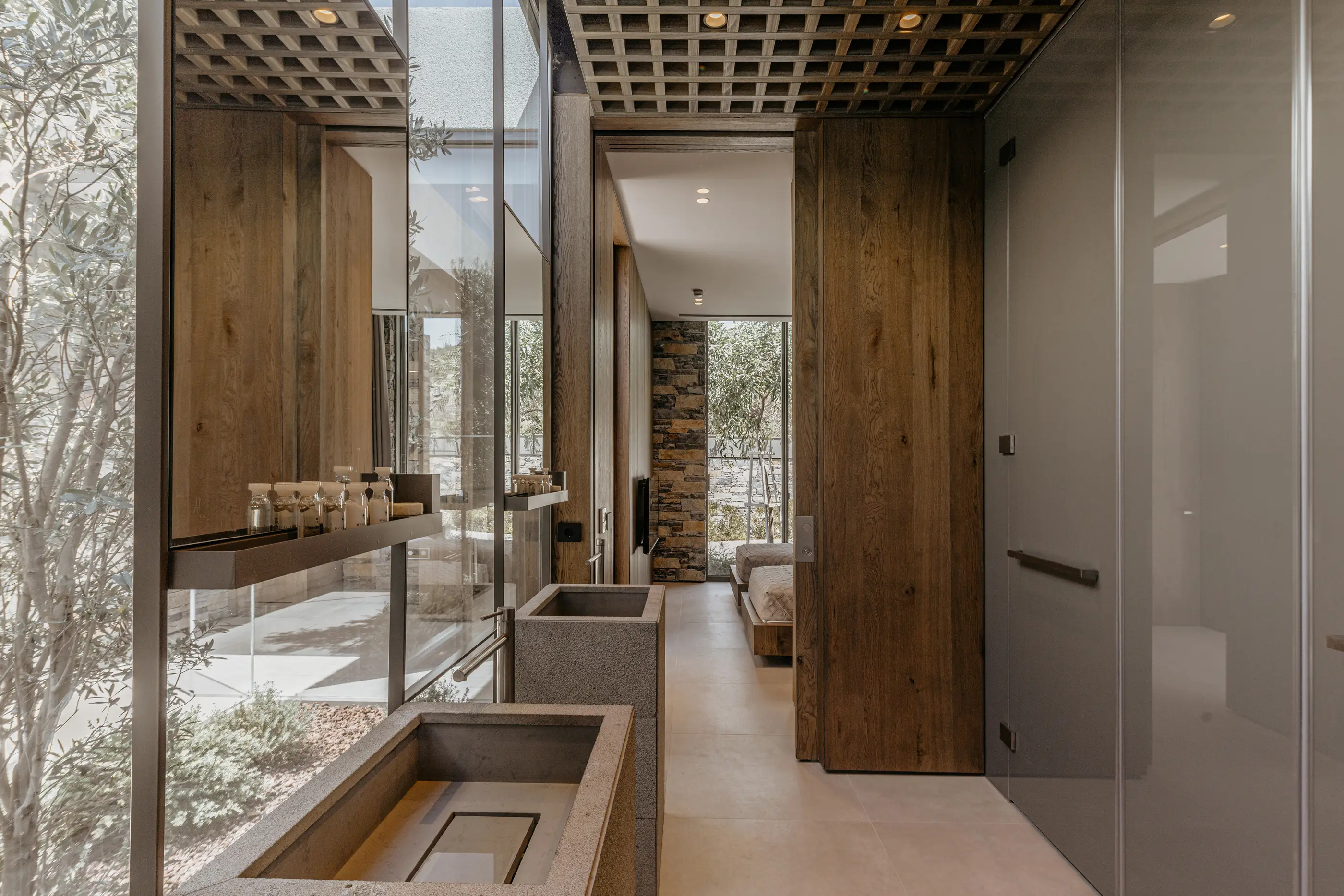

Bathroom with stone basins, glass partition and timber coffered ceiling

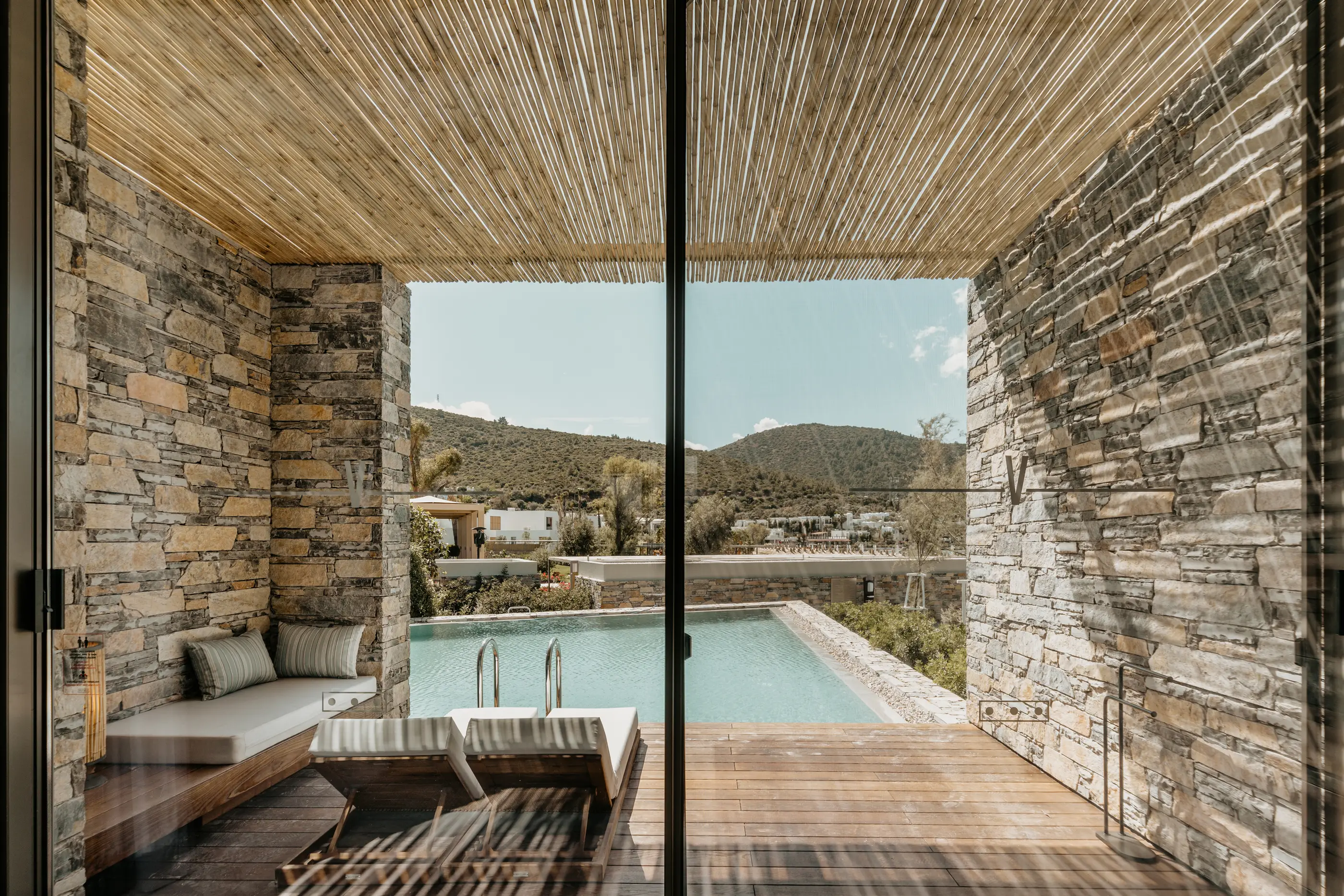

View from the reed-ceilinged terrace to the private pool and hills
Site plan diagram highlighting the Executive Lagoon section

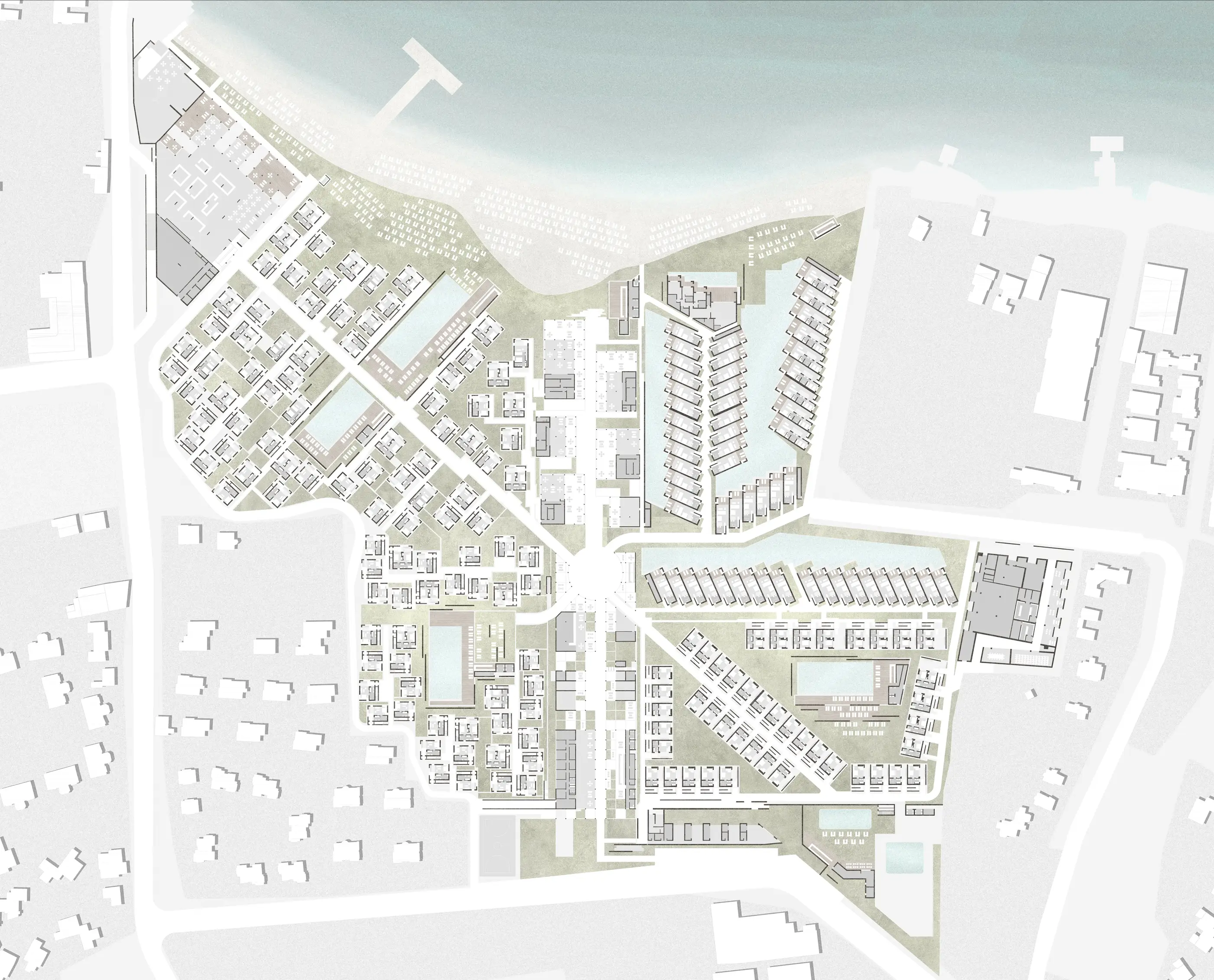

Site plan of the resort

Approach

The project is in Torba, Bodrum. As a whole it has 60,000 m² of built area and 345 rooms. To come to terms with the existing environment, the site was broken down, reduced in scale and divided into building groups and sub- and micro-zones, giving 5 parts; this is Part 3, designed for its own needs and context.

The required programme and content led the project to develop along a linear line, shaped by the main artery/street that crosses the whole site diagonally from end to end and the arteries passing along its edge.

The buildings rest against the street and surround a courtyard, a “hayat”.

Rows of “room-houses” are separated from each other by a “taşlık”, a stone-paved hall placed between them. The taşlıks of the upper room-houses are reached by stairs from the street. To add some privacy, the lower and upper taşlıks are offset from each other.

Over time, two courtyards, one green and one with a pool, came to form a public space for the residents of this part.

While the courtyard was conceived as a place for gathering and shared use, one of the project’s key criteria was to create a gradual sequence from public to private: from these courtyards to semi-open space, from semi-open space to the room, and from the room to the more enclosed wet areas.

The taşlık, gradually forming a niche off the street, defines its own intimate space while providing a measure of controlled privacy. Windows facing the taşlık on the inner side were kept larger and more permeable, while those facing the central courtyard were somewhat smaller and can be fully closed with shutters when needed.

The stairs leading down to the street and the taşlık niches are partly screened by wall elements of different lengths and heights running parallel to the buildings.

The project’s core motivation continued in this part too: gaps and spatial arrangements where people join human activity step by step, and when needed retreat into their own gap, their own intimate space, into themselves, and pause.
