The project is in Torba, near Bodrum, a town that tourism, construction and relentless development pressure have so far only grazed. It consists of two-storey, mostly detached summer houses and a few boutique hotels.

Voyage Torba is the town’s largest hotel. The project site combines two large hotels. The new programme, with a reduced number of rooms, covers a 74,000 m² site with 60,000 m² of built area and 345 rooms. The site consists of 5 zones and 5 building types, each designed for the needs and context of its zone.

Location

Torba, Bodrum

Client

Voyag Otelcilik İnşaat Turizm İşletmeciliği

Year

2020

Status

Built

Program

TOURISM

Site Area

74,000

m²

Project Area

60,000

m²

Design Team

Abdurrahman Çekim, Sevilay Uğur Çekim, Çağla Makara, İrem Cihanoğlu, Kübra Paksoy, Behlül Kıryolcu, Havva Nur Şen, Berkay Öztürk, Birce Tülbez


Orhun Ülgen / Voyage

Stepped white volumes with an entrance between them
Path and external stair between white buildings
Path and external stair between white buildings
White row houses with timber shutters seen across the pool
Sun loungers by the pool with white row houses
Entrance between textured white walls with a flowering garden
Path along the white buildings with a young tree
External stair between white walls
Seating area and cypress trees in front of the white buildings
External stair between white walls
Seating area and cypress trees in front of the white buildings
White houses with timber shutters beyond the pool
White houses with timber shutters beyond the pool
White buildings with people walking in front
A woman walking past the textured white façade

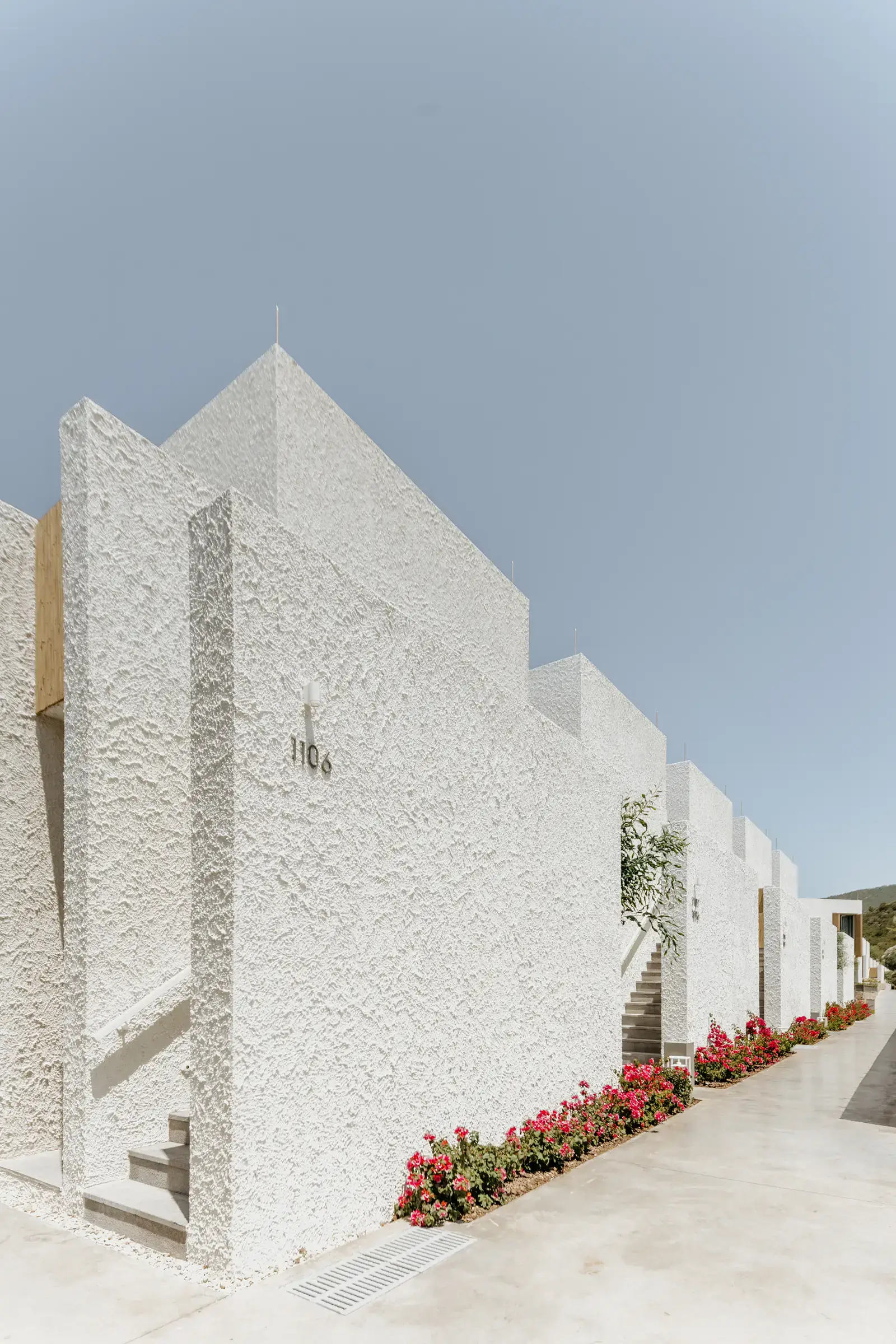

Stepped white walls and a flower-lined path
Entrance courtyard between white walls
Stepped white walls and a flower-lined path
Entrance courtyard between white walls
Garden façade of the white houses with timber shutters
White houses with timber shutters lined along the garden
White houses with timber shutters lined along the garden
Close top-down view of the pool and surrounding houses
Aerial view of the row houses and pool
Two-storey white houses with timber shutters and garden
Tree and entrance between white volumes
Close view of the stepped white volumes

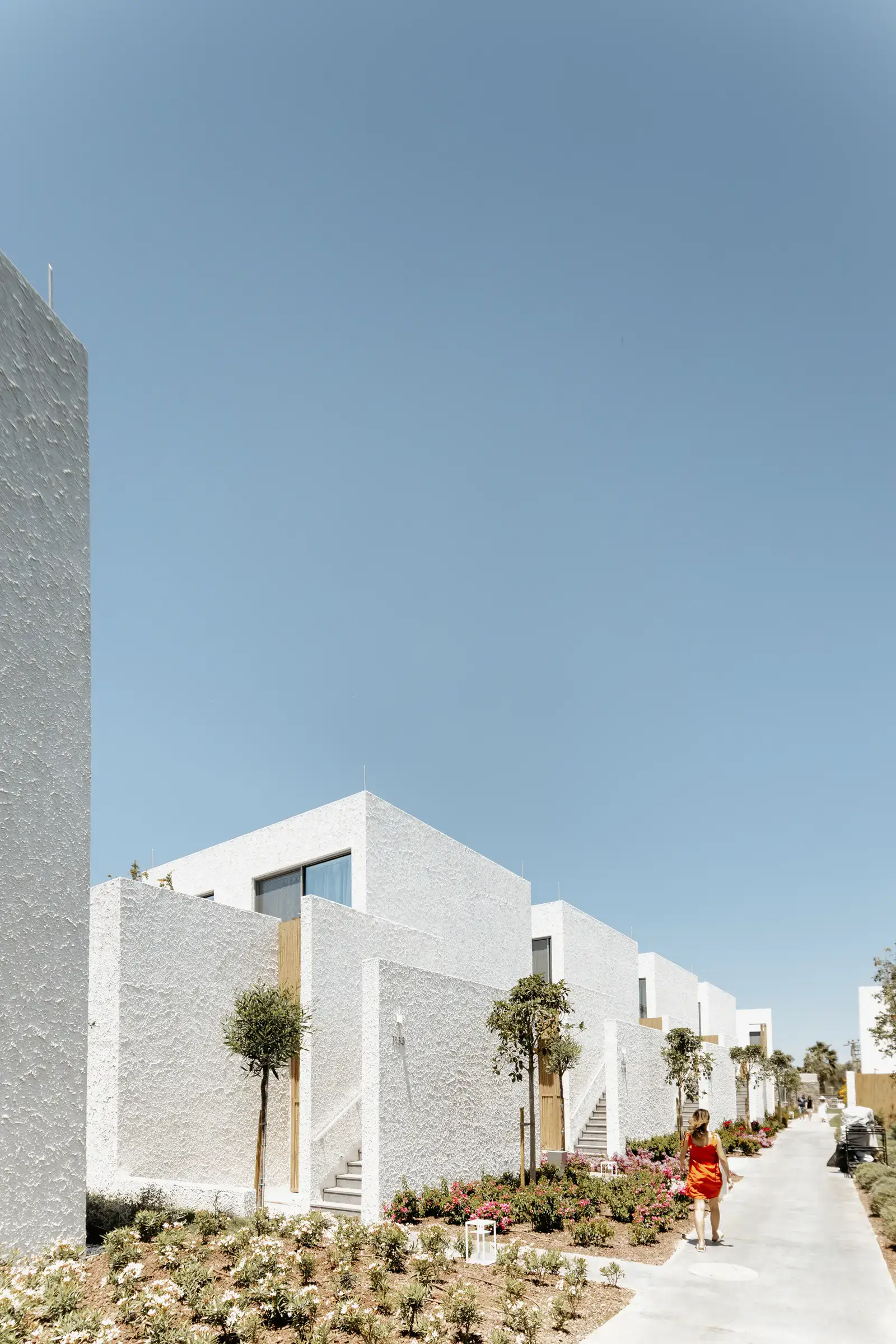

Path along the white buildings with people walking
Path between two rows of white buildings
Path along the white buildings with people walking
Path between two rows of white buildings
Textured white corner building with a timber door

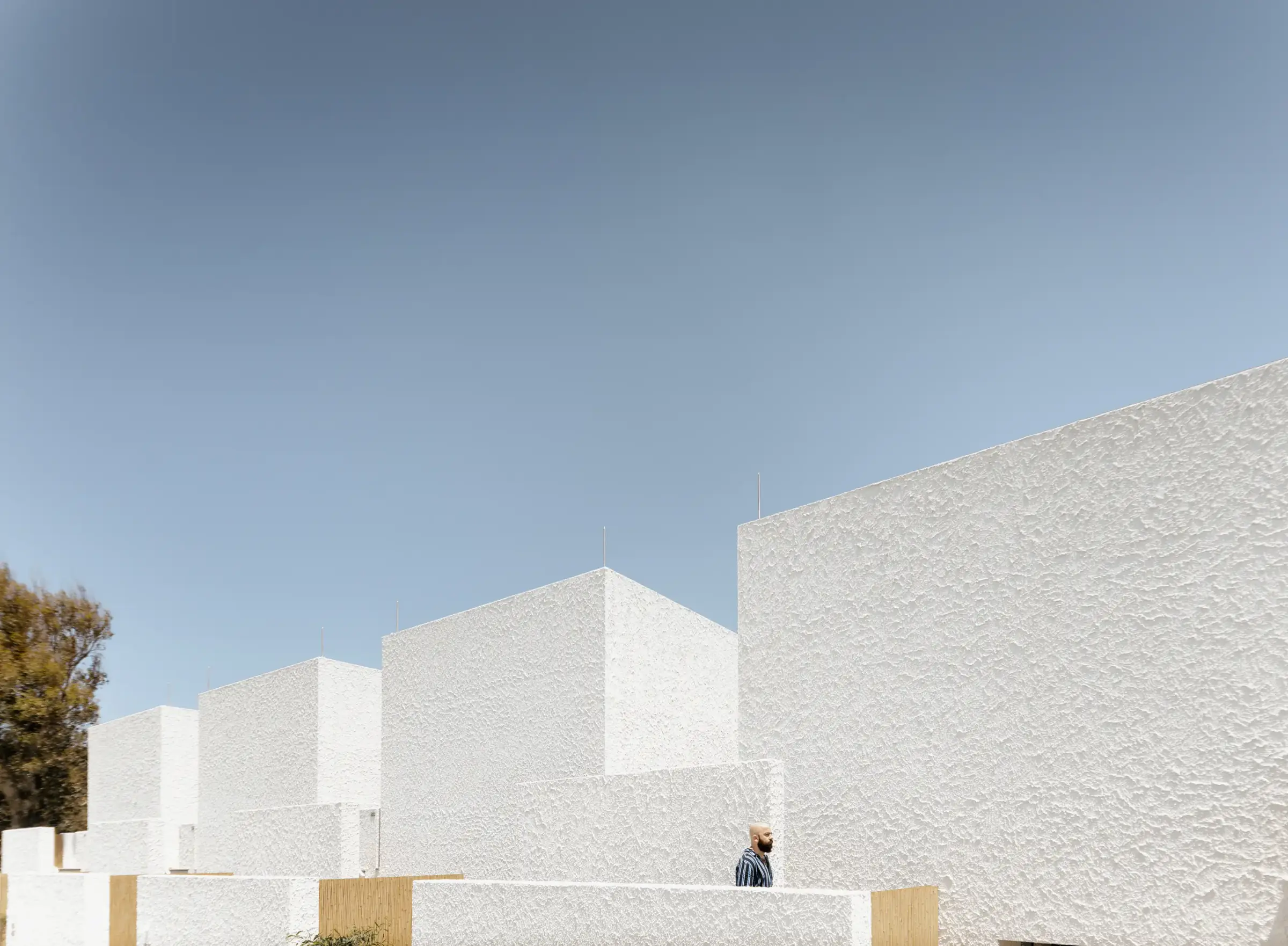

Stepped white volumes against the sky
Path and external stair along a white wall
White buildings with external stairs
Path and external stair along a white wall
White buildings with external stairs
White volumes lined up before the hill
White houses with timber shutters facing the shared garden
Olive tree between white walls

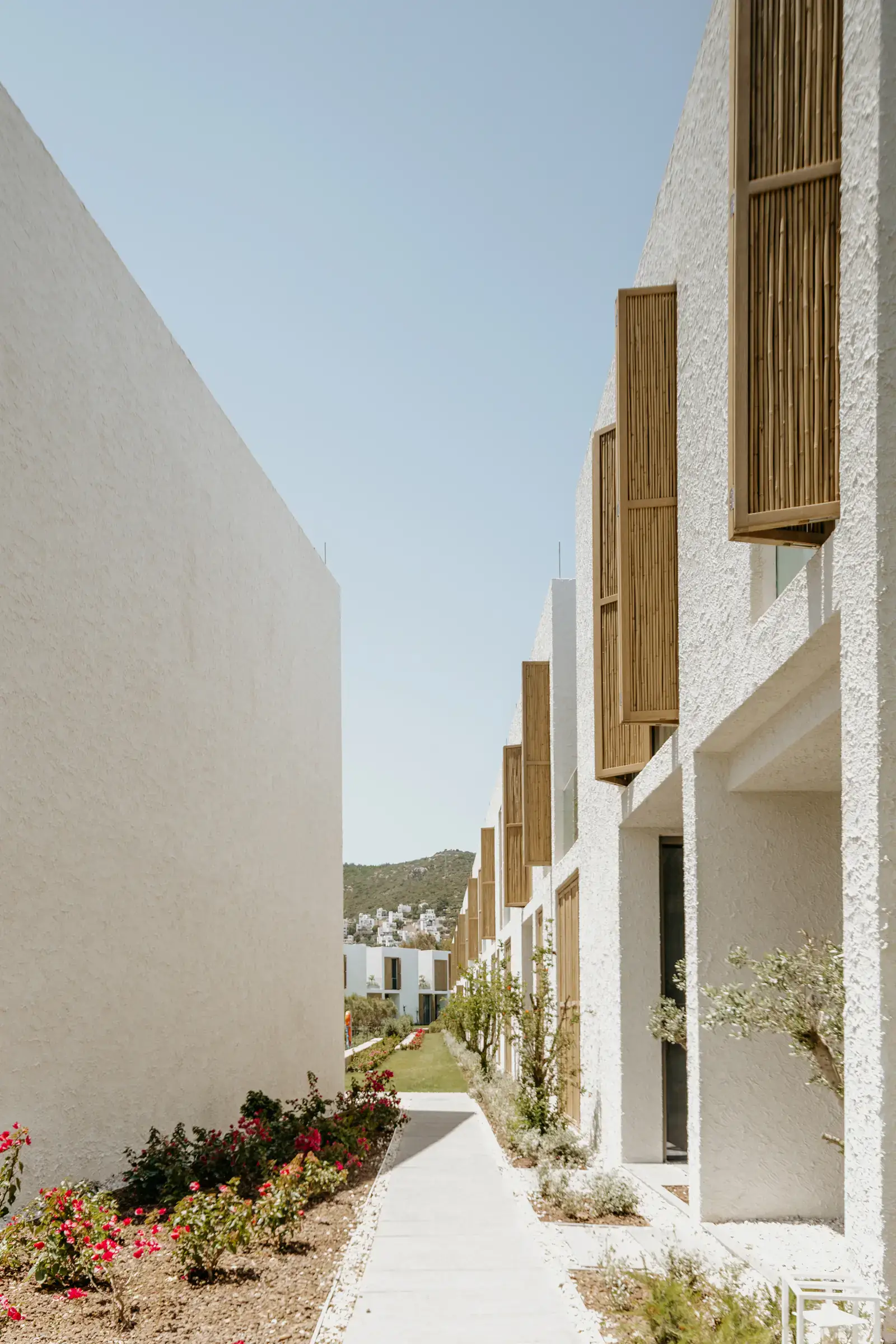

Path between a white wall and a timber-shuttered façade
Olive tree between white walls
Path between a white wall and a timber-shuttered façade

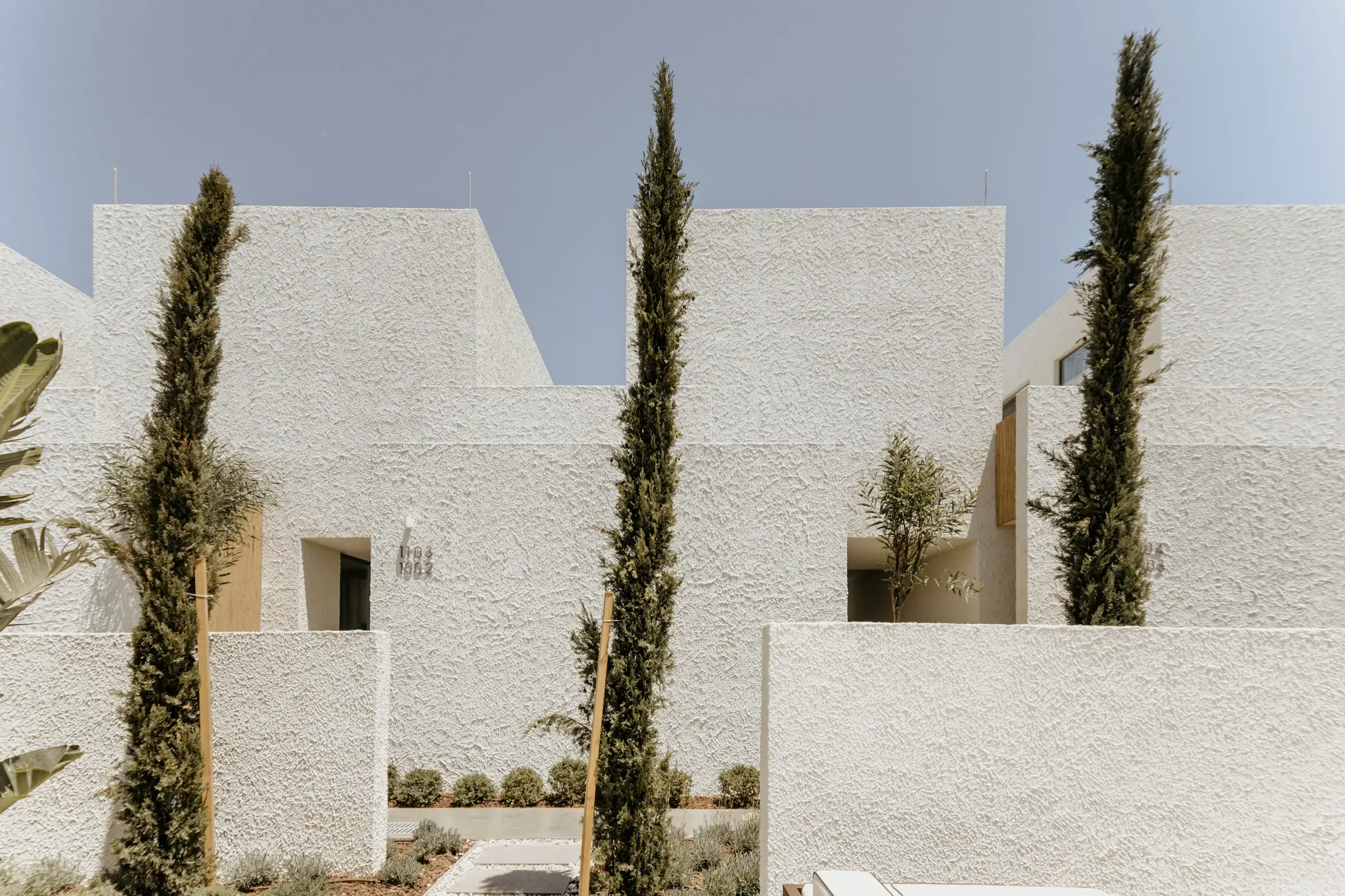

Three cypress trees in front of the white volumes

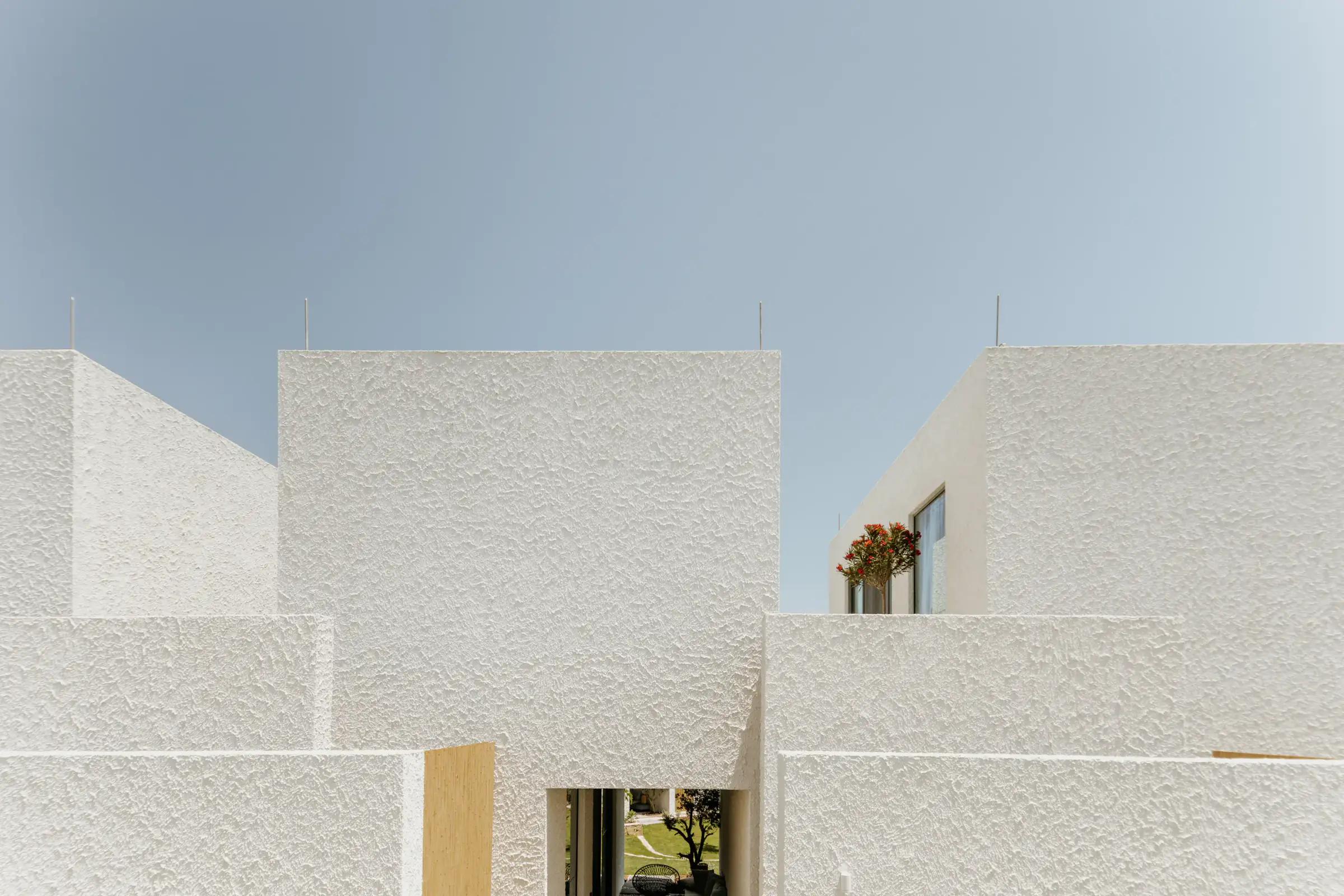

Close view of the white volumes and courtyard walls
Site plan showing the layout of the row houses
Ground and first floor plans of house type B

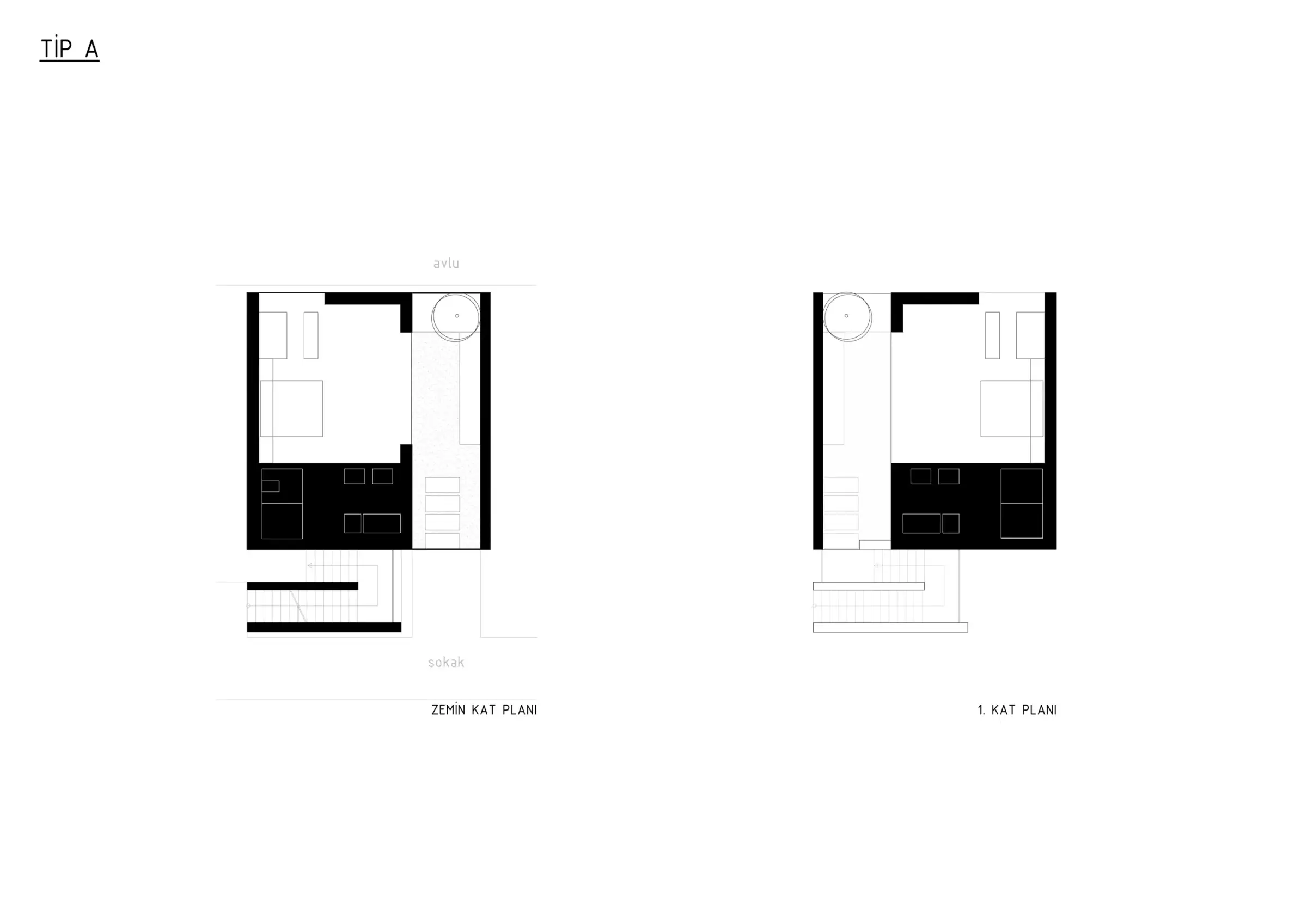

Ground and first floor plans of house type A

Approach

The project is in Torba, Bodrum. As a whole it has 60,000 m² of built area and 345 rooms. To come to terms with the existing environment, the site was broken down, reduced in scale and divided into building groups and sub- and micro-zones, giving 5 parts; this is Part 3, designed for its own needs and context.

The required programme and content led the project to develop along a linear line, shaped by the main artery/street that crosses the whole site diagonally from end to end and the arteries passing along its edge.

The buildings rest against the street and surround a courtyard, a “hayat”.

Rows of “room-houses” are separated from each other by a “taşlık”, a stone-paved hall placed between them. The taşlıks of the upper room-houses are reached by stairs from the street. To add some privacy, the lower and upper taşlıks are offset from each other.

Over time, two courtyards, one green and one with a pool, came to form a public space for the residents of this part.

While the courtyard was conceived as a place for gathering and shared use, one of the project’s key criteria was to create a gradual sequence from public to private: from these courtyards to semi-open space, from semi-open space to the room, and from the room to the more enclosed wet areas.

The taşlık, gradually forming a niche off the street, defines its own intimate space while providing a measure of controlled privacy. Windows facing the taşlık on the inner side were kept larger and more permeable, while those facing the central courtyard were somewhat smaller and can be fully closed with shutters when needed.

The stairs leading down to the street and the taşlık niches are partly screened by wall elements of different lengths and heights running parallel to the buildings.

The project’s core motivation continued in this part too: gaps and spatial arrangements where people join human activity step by step, and when needed retreat into their own gap, their own intimate space, into themselves, and pause.
